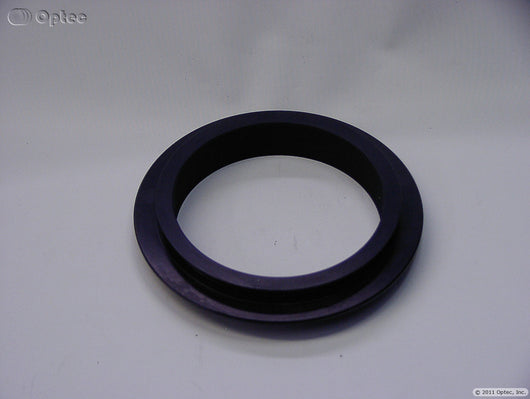

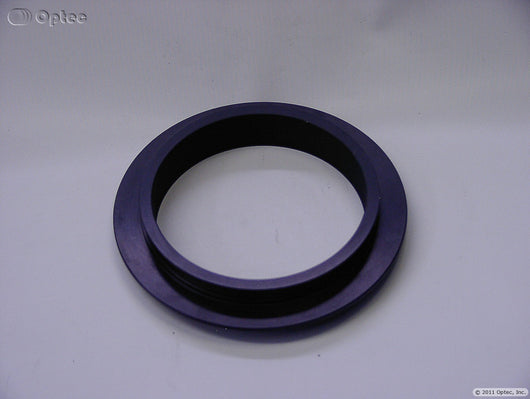

The #19805 FLI Atlas mount allows Optec equipment with an OPTEC-3600 receiver such as the TCF-S3 and IFW-3 to be connected to the FLI Atlas Zero-Tilt Adapter.

Specifications

Compatible With

TCF-S3 series focuser,
Pyxis 3" rotator,
Perseus 4-port instrument selector,
Any OPTEC-3600 receiver.

Outside Diameter: 4.45" (113mm)
Overall Height: 0.74" (18.8mm)
Clear Aperture: 3.2" (81.3mm)
Weight: 3.2 oz (90.7 g)
Back-focus Usage: 0.08" (2.03mm)
Telescope Side Connection: FLI Atlas ZTA
Camera Side Connection:: OPTEC-3600 Dovetail
Drawing

Country

Country

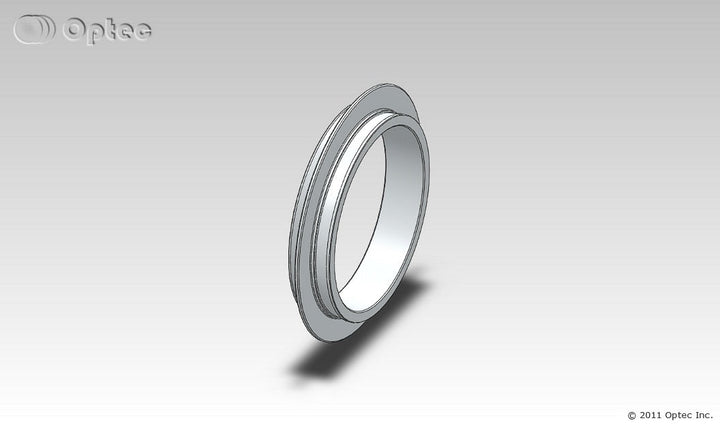

Optec Inc. FLI Atlas zero-tilt adapter to OPTEC-3600 dovetail adapter
