Optec Inc. FocusLynx Precision Temperature Probe Kit: Enhanced Telescope Focusing Accuracy

Ambient Temperature Measurement: Designed to measure ambient temperature changes, enhancing the accuracy of telescope focusing.
Direct OTA Temperature Reading: Ideal for astronomers who prefer temperature measurements directly at the telescope Optical Tube Assembly (OTA) for more precise data.
Compatibility with QuickSync Motors: Complements the QuickSync motors' on-board temperature probe by offering an external measurement option.
Essential for Original MicroTouch Motors: For users of original MicroTouch motors lacking an on-board temperature sensor, this kit provides the necessary sensor for Temperature Compensation (TC).
Improves Focusing Precision: Helps in achieving sharper focus by compensating for temperature-related expansion or contraction of the telescope structure.
Easy to Install: The kit is user-friendly and can be easily integrated into existing telescope setups.
Suitable for Various Telescope Models: Versatile enough to be used with a range of telescope models that benefit from temperature-compensated focusing.
Enhances Astrophotography Results: Particularly beneficial for astrophotographers seeking the highest level of focus precision in their images.
Professional Grade Accessory: An essential tool for both amateur and professional astronomers who require accurate temperature data for optimal telescope focusing.

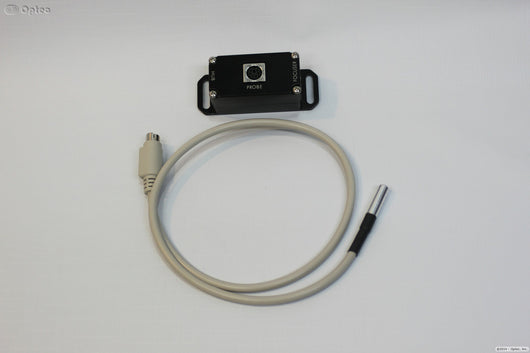

External Temperature Probe Kit: Includes all necessary components for external temperature measurement, ensuring comprehensive temperature monitoring capabilities.

Specifications

Temperature Sensor: Digital Temp Sensor type TMP04FT9Z
Probe Cable Length: 24-inch (61mm) [lengths to 6-ft. upon request]
Hub Connection: RJ45 8-pin socket
Probe Connection: 6-pin DIN socket
Focuser Connection: RJ12 6-pin socket
Splitter Box Material: 6061 aluminum, anodized black
Length: 3.1" (80.3m)
Width: 1.125" (28.5mm)
Thickness: 1.2" (31.3mm)
Weight: 2.2 oz (65 g)
Mounting: Dual tabs with 1/4-20 clearance holes

Software and Docs

Direct Connect Cable Wiring diagram for the original MicroTouch and FeatherTouch square box
Quick Start Guide
