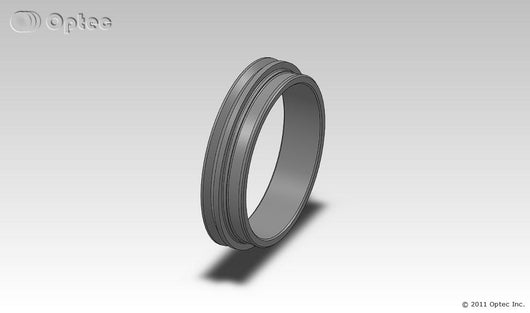

The #19667 Intes mount allows Optec equipment with an OPTEC-2400 receiver such as the TCF-S and IFW to be connected to equipment that presents an MCT-180-type or MK-69-type connection.
Specifications
Outside Diameter: 2.6" (66mm)
Overall Height: 0.58" (14.7mm)
Clear Aperture: 2.15" (54.6mm)
Weight: 0.96 oz (27.2 g)
Back-focus Usage: 0" (0mm)
Telescope Side Connection: Intes MCT-180/MK-69
Camera Side Connection:: OPTEC-2400 Dovetail
Drawing
