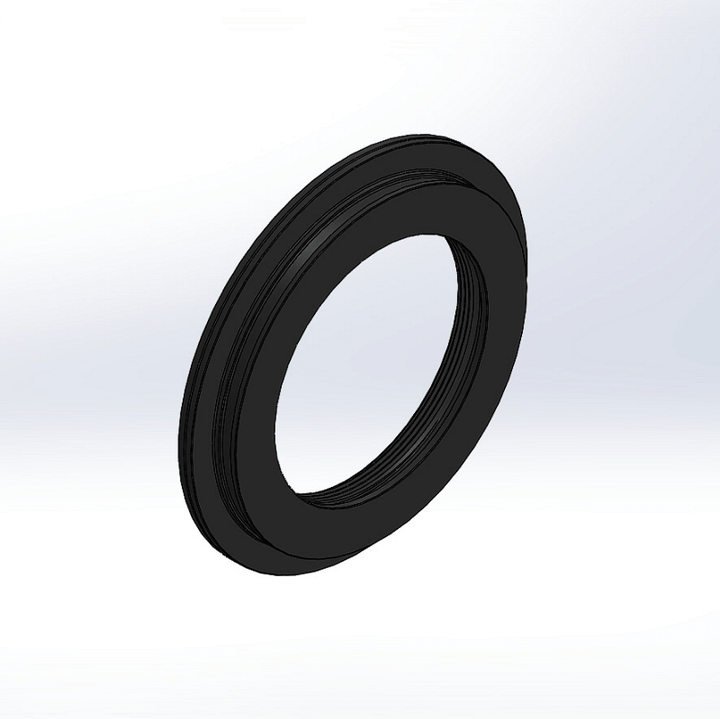

The #19836 adapter converts the larger 3.29-inch rear cell thread on the back of Meade's 10", 12", and 14" class OTA's to a male OPTEC-4300 dovetail standard. This allows attachment of Optec's Gemini Focusing Rotator or TCF-Lynx3 Gen2 3-inch focuser.

Specifications

Compatibility

• Meade 10"/12"/14" LX200 / LX200 GPS SCT telescope,
• Meade 10"/12"/14" LX600 ACF telescope,
• Meade 10"/12"/14" LX650 ACF telescope,
• Meade 10"/12"/14" LX850 ACF telescope,
• Gemini Focusing Rotator,
• TCF-Lynx3 Gen2 Focuser,
• Any OPTEC-4300 receiver adapter.

• Inside Diameter: 3.1" (78.7mm)
• Outside Diameter: 4.95" (125.6mm)
• Overall Height: 0.52" (13.2mm)
• Clear Aperture: 3.1" (78.7mm)
• Weight: 6.4 oz (185 g)
• Back-Focus Usage: -0.22" (-5.6mm)
• Drawing
