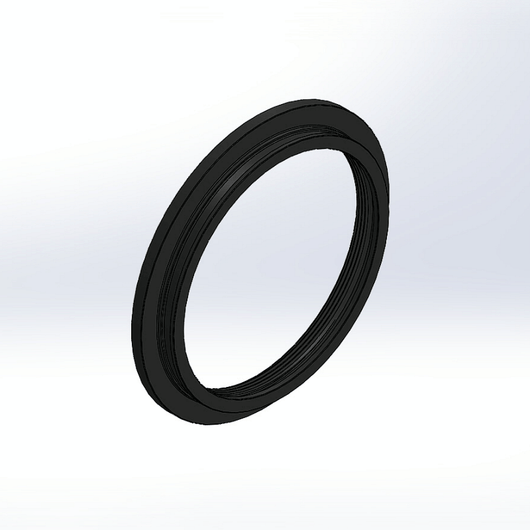

The #19835 adapter converts the large 4-inch rear cell thread on the back of Meade's 16" OTA to a male OPTEC-4300 dovetail allowing attachment of Optec's Gemini Focusing Rotator or TCF-Lynx3 3-inch focuser.

Specifications

Compatibility

• Meade 16" LX200 / LX200 GPS SCT telescope,
• Meade 16" LX600 ACF telescope,
• Meade 16" LX650 ACF telescope,
• Meade 16" LX850 ACF telescope,
• Gemini Focusing Rotator,
• TCF-Lynx3 Gen2 Focuser,
• Any OPTEC-4300 receiver adapter.

• Inside Diameter: 3.8" (96.5mm)
• Outside Diameter: 4.95" (125.6mm)
• Overall Height: 0.52" (13.2mm)
• Clear Aperture: 3.8" (96.5mm)
• Weight: 3.2 oz (90 g)
• Back-Focus Usage: -0.2" (-5.0mm)
• Drawing
