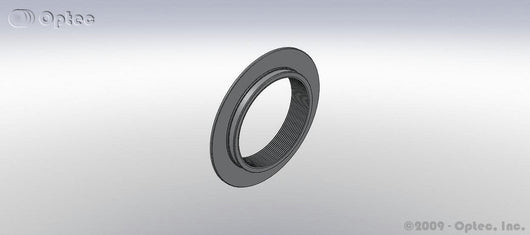

Meade's RCX line of telescopes were originally designed with a movable corrector and secondary. This design included a large plastic cover on the back of the OTA. Our #17824 mount screws on to the aluminum threaded cell and bottoms out against the plastic cowling. This allows the addition of the TCF-S3 3-inch focuser, Pyxis 3-inch, or Perseus 4-port Instrument Selector.

Specifications

Camera-side Compatibility:

TCF-S3 series focuser,
Pyxis 3" rotator,
Perseus 4-port instrument selector,
Any OPTEC-3600 receiver.

Overall Height: 0.90" (22.9mm)
Clear Aperture: 3.05" (77.5mm)
Weight: 3.4 oz (100 g)
Back-focus Usage: 0.10" (2.5mm)
Drawing
