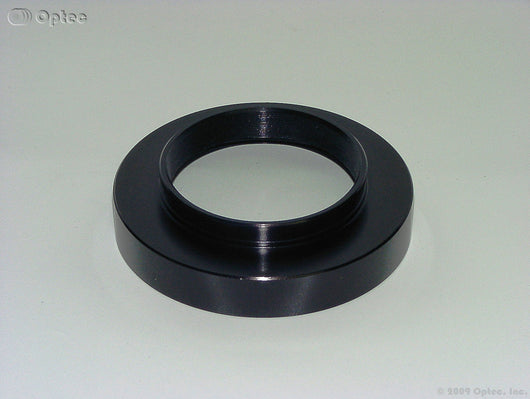

The Meade 3-inch mount screws directly onto the larger 3-inch diameter male thread of the 10"/12"/14" class Schmidt Cassegrain Telescopes. This mount provides the OPTEC-2400 dovetail for attachment of any device with an OPTEC-2400 receiver including the TCF-S focuser and IFW intelligent filter wheel.

Specifications

Camera-side Compatibility:

Meade 10" LX200 series SCT
Meade 12" LX200 SCT series SCT
Meade 14" LX200 SCT series SCT

Overall Height: 0.90" (22.9mm)
Clear Aperture: 2.16" (54.9mm)
Weight: 2.0 oz (60 g)
Back-focus Usage: 0.10" (2.5mm)
Drawing
