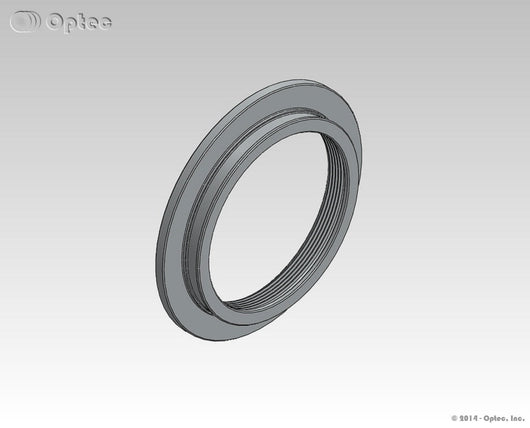

The Meade 3-inch mount screws directly onto the large 3-inch diameter rear cell thread of the Meade 10/12/14" class Schmidt Cassegrain Telescopes. This mount presents the OPTEC-3600 dovetail for attachment of any device with an OPTEC-3600 receiver including the TCF-S3, IFW-3, and Pyxis 3" rotator.

Compatible with

Meade 10", 12", 14" LX200, LX200 GPS,
Meade 10", 12", 14" LX200-ACF,
Meade 10", 12", 14" LX600-ACF,
Meade 10", 12", 14" LX800-ACF, LX850-ACF.

Specifications

Overall Height: 0.55" (14.0mm)
Clear Aperture: 3.1" (78.7mm)
Weight: 3.4 oz (95 g)
Back-focus Usage: 0.2" (5.1mm)
Telescope Side Connection: Meade 3-1/4 inch female thread
Camera Side Connection: OPTEC-3600 male dovetail
Drawing
