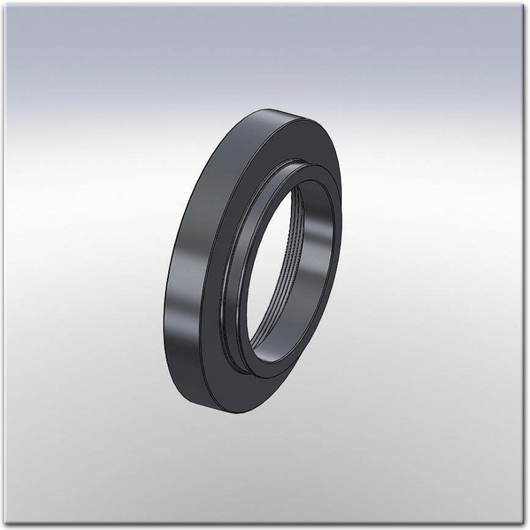

Optec Inc. Telescope Mount for Meade 16” LX200.

• Mount Design: Specifically designed for 4” rear cell thread.
• Compatibility: Suitable for Meade 16-inch class Schmidt-Cassegrain Telescopes.
• Direct Attachment: Screws directly onto the large 4-inch diameter rear cell thread.
• OPTEC-3600 Dovetail Adapter: Features the OPTEC-3600 dovetail for connecting devices with an OPTEC-3600 receiver.
• Device Support: Compatible with TCF-S3, IFW-3, and Pyxis 3" rotator.
• Telescope Models Compatible:
  • Meade 16" LX200 SCT telescope
  • Meade 16" LX200 GPS SCT telescope
  • Meade 16" LX600-ACF telescope
  • Meade 16" LX800-ACF telescope
  • Meade 16" LX850-ACF telescope

Specifications

• Inside Diameter: 3.05" (77.3.mm)
• Outside Diameter: 4.95" (126mm)
• Overall Height: 1.04 (26.4mm)
• Clear Aperture: 3.05" (77.3mm)
• Weight: 10.4 oz (295 g)
• Back-Focus Usage: 0.69" (17.5mm)
• Drawing
