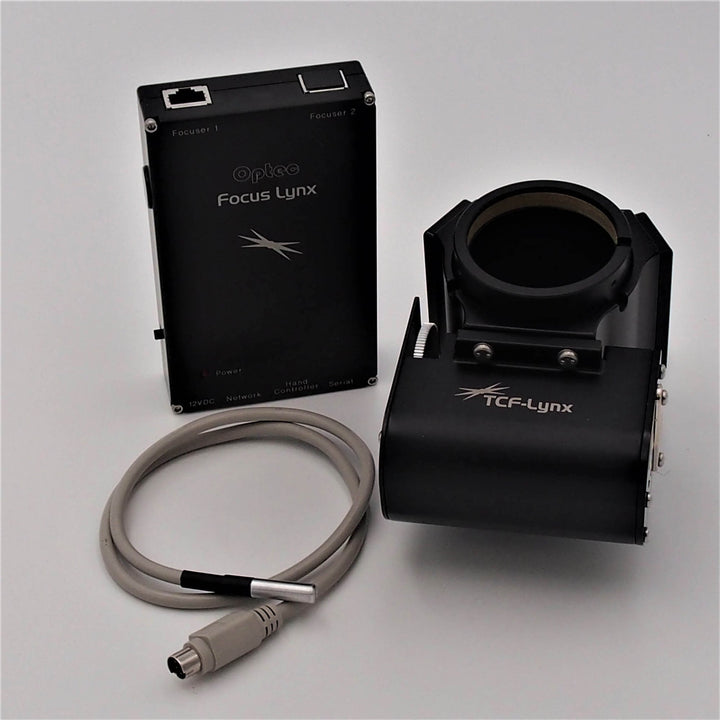

Optec Inc. TCF-Lynx- Precision 2” Temperature Compensating Focuser

• Smooth Focus with Crayford Design: Features a robust 2-inch Crayford-style mechanism, ensuring precise and smooth focusing.
• Enhanced Performance: The updated model offers faster focusing, maintaining compactness and durability.
• FocusLynx Control System: Comes with the proven FocusLynx control system, capable of expanding to control a second focuser.
• Optional Connectivity Accessories: Includes options for 802.11 WiFi and a hand control accessory for added versatility.
• Adaptable Drawtube: Compatible with all Optec 2-inch adapters, specially developed for TCF-S and TCF-Lynx focusers.
• 1-1/4" Centering Adapter: Offers an optional adapter for fitting 1-1/4-inch diagonals or eyepieces, enhancing versatility.
• FocusLynx Hand Controller: Equipped with a fine-focus rotary knob, ideal for visual users requiring touch-free telescope focusing.
• Controller Hub Requirement: Note that this model needs a FocusLynx Controller Hub for operation.
• Ideal for Advanced Astronomical Use: Suitable for both amateur and professional astronomers seeking a high-quality focuser with temperature compensation capabilities.

Specifications

• Overall Height: 3.3" (84mm) to 3.9" (99mm)
• Focuser Travel: 0.6" (15.2mm)
• Focuser Midpoint 3.6" (91.4mm)
• Total Step Travel: 7,000 steps
• Step Resolution: 2.2 microns
• Weight: 2lb. 4oz. (1.0 kg)
• Payload Capacity: 10-lbs. (4.5 kg)
• Telescope-side Mount: OPTEC-2400 dovetail
• Camera-Side Mount: 2-inch drawtube
• Control System: FocusLynx Controller (included if With Hub selected)

Functional Specifications:

• Stepper Motor Control: bipolar and unipolar stepper motors,
• Resolution: 16-bit controller with 65,535 step range per focuser,
• PC Connectivity: USB/Serial, Ethernet, or optional 802.11 WiFi,
• Hand Control: Optional 2-button with Digital Read-Out,
• WiFi Connection: Optional 802.11b/g compatible,
• Second Stepper: Optional plug-in daughter board,
• Input Power: 12VDC univeral power supply (110 to 230VAC input),
• Alternative Power: Field battery voltage (13.8VDC) with optional automotive cigarette lighter plug,
• Software Drivers: ASCOM local server, X2 native drivers for TheSky X

FocusLynx Port Connections:

• Focuser 1: RJ45 socket for standard Cat-5e/Cat-6 to focuser,
• Focuser 2: Optional second stepper board for RJ45 socket,
• Power: 12VDC input, 2.5 x 5.5mm plug, center pin positive,
• Network: Standard RJ45 Ethernet socket,
• Hand Controller: RJ22 socket for standard telephone handset cord,
• Serial: RJ12 socket for Optec USB/Serial cable (included).

Overall Height: 3.3" (84mm) to 3.9" (99mm) Focuser Travel: 0.6" (15.2mm) Focuser Midpoint 3.6" (91.4mm) Total Step Travel: 7,000 steps Step Resolution: 2.2 microns Weight: 2lb. 4oz. (1.0 kg) Payload Capacity: 10-lbs. (4.5 kg) Telescope-side Mount: OPTEC-2400 dovetail Camera-Side Mount: 2-inch drawtube Control System: FocusLynx Controller (included if With Hub selected)
