Optec Inc. OGS 12.5-inch to OPTEC-3600 dovetail adapter

$100.00

The #19803 OGS mount allows Optec equipment with an OPTEC-3600 receiver such as the TCF-S3 and IFW-3 to be connected to Optical Guidance Systems OTA's by attaching directly to the OGS...

Add to Wishlist

amazon paymentsamerican expressapple paybitcoingoogle payjcbmasterpaypalshopify paysofortvisa
Ask a Question
SKU: 19803
Categories: Optec, Inc.
Tags: 3600 dovetail dovetail adapters Optec
Description

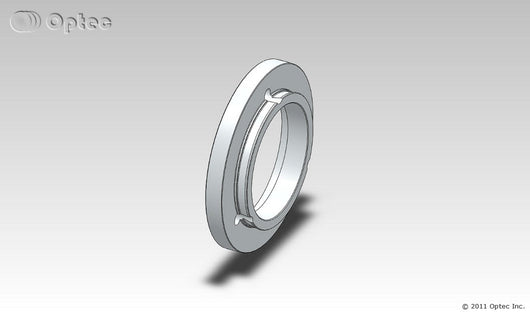

The #19803 OGS mount allows Optec equipment with an OPTEC-3600 receiver such as the TCF-S3 and IFW-3 to be connected to Optical Guidance Systems OTA's by attaching directly to the OGS 12.5-inch bolt circle.

Camera-side Compatibility:
  • TCF-S3 series focuser,
  • Pyxis 3" rotator,
  • Perseus 4-port instrument selector,
  • Any OPTEC-3600 receiver

Specifications

  • Outside Diameter: 4.95" (125.7mm)
  • Overall Height: 0.86" (21.84mm)
  • Clear Aperture: 3.05" (77.5mm)
  • Weight: 9.28 oz (263.1 g)
  • Back-focus Usage: 0.47" (11.9mm)
  • Telescope Side Connection: OGS 12.5 - R1.875 Bolt Circle
  • Camera Side Connection:: OPTEC-3600 Dovetail
  • Drawing\
