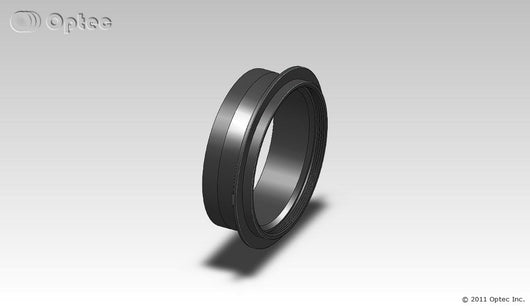

The #17834 3-inch Takahashi mount screws directly onto Takahashi equipment with female 72mm threads and presents an OPTEC-3000 dovetail to attach to any product with an OPTEC-3000 receiver, including the TCF-S3, IFW-3, and Pyxis 3" rotator.

Specifications

Outside Diameter: 3.45" (87.6mm)
Overall Height: 1.02" (25.9mm)
Clear Aperture: 2.6" (66mm)
Weight: 2.56 oz (72.6g)
Back-focus Usage: 0.28" (7.2mm)
Telescope Side Connection: OPTEC-3000 Dovetail
Camera Side Connection:: Takahashi 72mm Female Thread
Drawing
