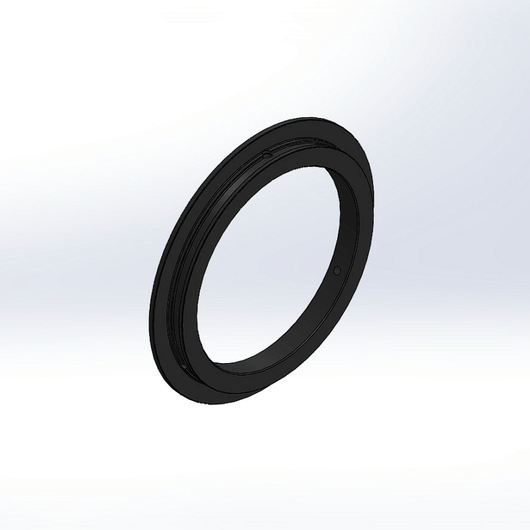

Optec Inc. OPTEC-3600 expansion adapter to OPTEC-4300 standard dovetail
The 3600 to 4300 Expansion Ring allows owners of any OPTEC-3600 telescope adapter to easily expand the male dovetail out to 4.3-inches matching the OPTEC-4300 spec Specifications Camera-Side: Any OPTEC-3600 telescope...
Description
Inside Diameter: 3.6" (91mm)
Outside Diameter: 4.95" (126mm)
Overall Height: 0.42" (10.7mm)
Clear Aperture: 3.6" (91mm)
Weight: 3.4 oz (100 g)
Back-Focus Usage: 0.1" (2.5mm)
Drawing
The 3600 to 4300 Expansion Ring allows owners of any OPTEC-3600 telescope adapter to easily expand the male dovetail out to 4.3-inches matching the OPTEC-4300 spec
Specifications
Camera-Side:
- Any OPTEC-3600 telescope adapter.
- Gemini Focusing Rotator.
- TCF-Lynx 3 3-inch Focuser.
Optec Inc. OPTEC-3600 expansion adapter to OPTEC-4300 standard dovetail
$65.00
