PlaneWave's 12.5" CDK telescope includes the Hedrick focuser with a rear plate called the SecureFit. The SecureFit connections allow a bolt-on secure fit for any accessory or camera.

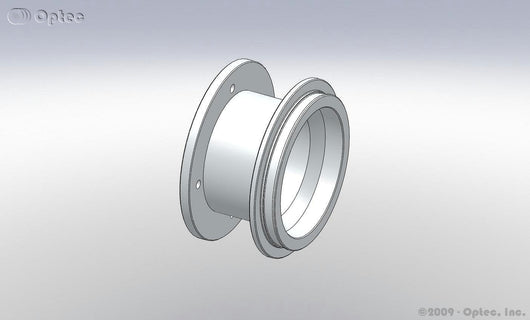

This adapter was specially designed for use with the Pyxis 3" and our 3-inch camera adapter #17835 to directly swap out the PlaneWave 4.8" spacer.

Specifications

Camera-side Compatibility:

• TCF-S3 series focuser,
• Pyxis 3" rotator,
• Perseus 4-port instrument selector,
• Any OPTEC-3600 receiver.

• Overall Height: 2.39" (60.5mm)
• Clear Aperture: 2.54" (64.5mm)
• Weight: 9.6 oz (275 g)
• Back-focus Usage: 1.90" (48.4mm)
• Back-focus Usage: 4.8" (when coupled with Pyxis 3" and #17835)
• Drawing
