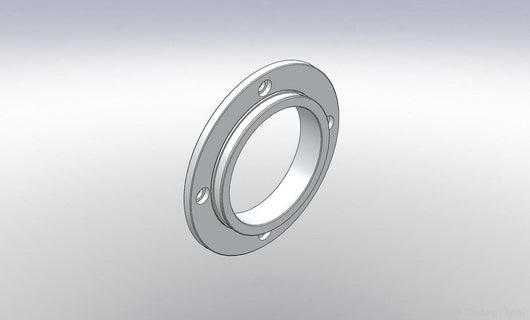

Optec PlaneWave Adapter: Low Profile to OPTEC-3600 Dovetail for CDK Telescopes

Key Features:

• Designed for PlaneWave CDK Telescopes: Specifically crafted to fit PlaneWave 14, 17, 20, and 24-inch CDK telescopes, ensuring seamless integration.

• Secure Attachment to Hedrick Focuser: The PlaneWave Low Profile mount attaches directly to the Hedrick SecureFit focuser, ideal for mounting the Pyxis 3-inch camera field rotator.

• Efficient Design: Bolts directly onto the SecureFit mounts, the adapter is designed to consume minimal back-focus, only 6mm, maximizing imaging potential.

• Versatile Dovetail Interface: Features the OPTEC-3600 dovetail, providing a reliable connection point for any device equipped with an OPTEC-3600 receiver.

• Broad Compatibility: Suitable for use with a range of devices including TCF-S3, IFW-3, and the Pyxis 3" rotator, enhancing the adaptability of your telescope setup.

• Minimal Back-Focus Usage: Its low-profile design ensures minimal back-focus consumption, maintaining optimal performance of the telescope system.

Specifications

Telescope-side Compatibility:

• PlaneWave CDK 14-inch
• PlaneWave CDK 17-inch
• PlaneWave CDK 20-inch
• PlaneWave CDK 24-inch

Camera-side Compatibility:

• TCF-S3 series focuser,
• Pyxis 3" rotator,
• Perseus 4-port instrument selector,
• Any OPTEC-3600 receiver.

• Overall Height: 0.72" (18.3mm)
• Clear Aperture: 3.05" (77.5mm)
• Weight: 12 oz (350 g)
• Back-focus Usage: 0.235" (6.0mm)

• Drawing
