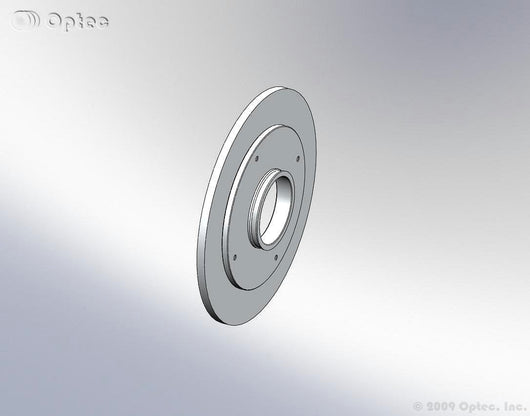

The PlaneWave 12.5" CDK mount fits the rear pinch-plate cover of the rear cell and presents the OPTEC-2400 dovetail for attachment of any device with an OPTEC-2400 receiver. This includes the TCF-S focuser and IFW intelligent filter wheel.

Specifications

• Outside Diameter: 6.0" (152mm)
• Overall Height: 0.56" (14.2mm)
• Clear Aperture: 2.04" (51.7mm)
• Weight: 13 oz (370 g)
• Back-focus Usage: 0.46" (11.6mm)
• Drawing
