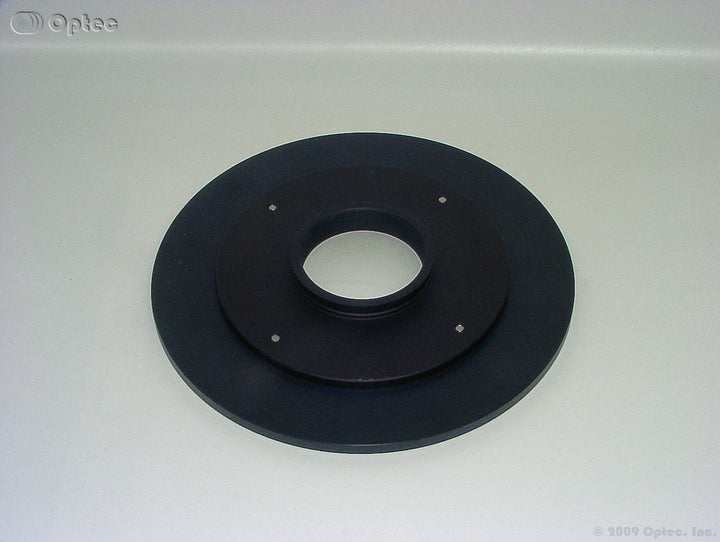

The PlaneWave 17 / 20 CDK mount fits the rear pinch-plate cover of the rear cell for either PlaneWave 17" or 20" CDK telescope and presents the OPTEC-2400 dovetail for attachment of any device with an OPTEC-2400 receiver. This includes the TCF 2-inch focusers, GEN3 Pyxis 2-inch rotator, or IFW intelligent filter wheel.

Specifications

• Outside Diameter: 7.125" (180mm)
• Overall Height: 0.56" (14.2mm)
• Clear Aperture: 2.04" (51.7mm)
• Weight: 1.1 lb. (500 g)
• Back-focus Usage: 0.46" (11.6mm)
• Drawing
