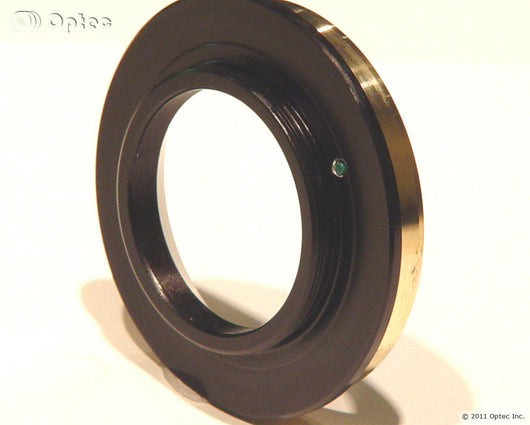

The #17646 T-Thread mount attaches screws directly onto equipment with a T-Thread mount and presents an OPTEC-2300 dovetail for attaching devices with an OPTEC-2300 receiver.

Specifications

• Outside Diameter: 2.45" (62.2mm)
• Overall Height: 0.55" (14mm)
• Clear Aperture: 1.38" (35mm)
• Weight: 1.6 oz (45.4 g)
• Back-focus Usage: 0.1" (2.54mm)
• Telescope Side Connection: OPTEC-2300 Dovetail
• Camera Side Connection: T-Thread
• Drawing
