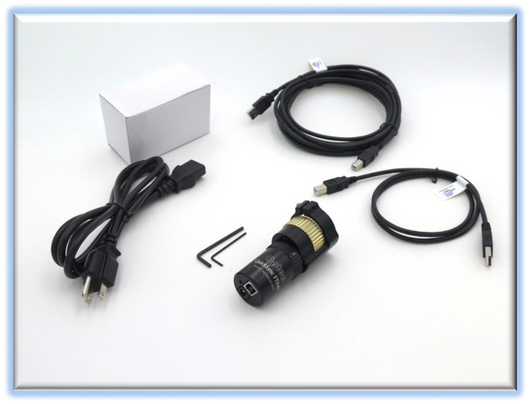

Optec Inc. QuickSync FT20R Motor for FeatherTouch 2-inch Rack-and-Pinion Focusers

• The #19970 QuickSync Motor for Feathertouch 2" Rack & Pinion focusers with built-in clutch mechanism and temperature sensor allows both manual and motorized control with a simple twist of the motor housing.

  Designed especially for the FeatherTouch FTF20 Rack & Pinion series manual focusers, the FT20R features a custom fine focus knob to fit the larger shaft of the 2-inch R&P series Feathertouch focusers. Simple installation and elegant design makes QuickSync the very best choice for motorizing a FeatherTouch.

Specifications

• Material: 6061 aluminum, anodized black with gold knob,
• Length: 6.3" (160mm)
• Width: 3.2" (81.4mm)
• Weight: 6.4 oz (180 g)
• Tools Required: 1/16" and 7/64" hex keys (included)
• Motor Cable: Standard Cat-5e or Cat-6 (6-ft. length included)
• Connection to FocusLynx: Focuser 1 or Focuser 2 port- RJ45 socket

Software and Docs

• Installation Instructions
• FocusLynx download page
