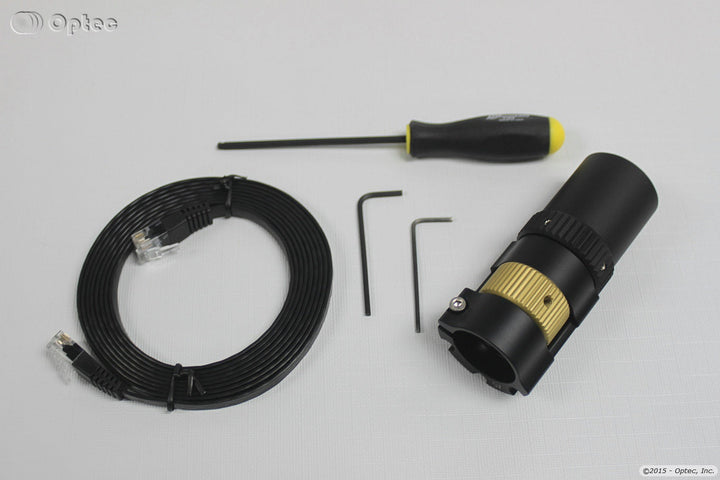

Optec Inc. QuickSync SVX20 for Older Stellarvue 2-Inch Focusers

• Designed for Stellarvue SVF20 Focusers: The QuickSync SVX20 system is a tailored upgrade for the Stellarvue SVF20 2-inch focuser, enhancing its capabilities.
• Embedded ThirdLynx Controller: Features the advanced ThirdLynx Controller, eliminating the need for an external FocusLynx hub, streamlining the setup.
• Easy Installation and Operation: The system's straightforward installation process allows for a quick setup, with both digital and manual focusing options for user convenience.
• Wide Compatibility: Suitable not only for Stellarvue SVF20 but also for Teleskop Services TS-Optics Photoline 60-mm f/5.5 FPL53 APO and similar focusers used in other APOs.
• Compact and Lightweight Design: With a motor housing width of 1.9 inches and an overall length of 3.35 inches, it's designed to be unobtrusive. Weighs just 5.2 oz, ensuring minimal impact on telescope balance.
• High Precision Focusing: Offers a step resolution of 1.1 microns per step, facilitated by a Bi-polar NPM 15-ohm stepper motor with a 1:25 gearhead, for ultra-precise focus adjustments.
• Ideal for Various Astrophotography Needs: Its precision and ease of use make it an excellent choice for both amateur astronomers and astrophotography enthusiasts.

Specifications

• Motor Housing Width: 1.9" (48mm)
• Overall Length: 3.35" (85mm)
• Weight: 5.2 oz (150 g)
• Step Resolution: 1.1 micron per step
• Stepper Motor: Bi-polar NPM 15-ohm with 1:25 gearhead
• ThirdLynx Controller

Software and Docs

ThirdLynx download page
