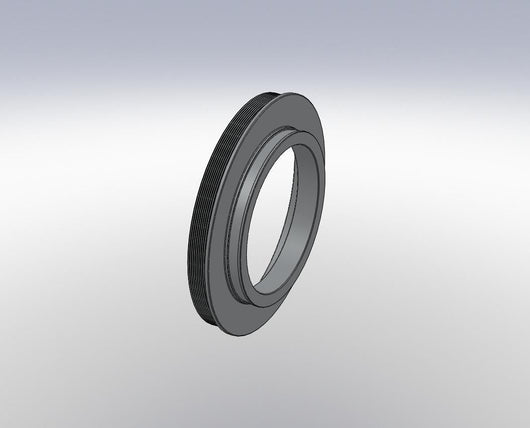

RC Optical Systems has a variety of threaded mounts and bolt patterns. Our #17823 is the first stock mount available which screws into the rear 4-3/4-inch 24 tpi (threads per inch) female receiver. This mount then presents the OPTEC-3600 dovetail for attachment of the TCF-S3, Perseus 4-port selector, Pyxis 3-inch, or any accessory with an OPTEC-3600 receiver.

Specifications

Telescope-side Compatibility:

RCOS 14.5"

Camera-side Compatibility:

TCF-S3 series focuser,
Pyxis 3" rotator,
Perseus 4-port instrument selector,
Any OPTEC-3600 receiver.

Overall Height: 0.90" (22.9mm)

Clear Aperture: 3.05" (77.5mm)

Weight: 5.2 oz (145 g)

Back-focus Usage: 0.10" (2.5mm)

Drawing

Country

Country

Optec Inc. RC Optical 4.75” x 24tpi threaded mount to OPTEC-3600 dovetail adapter
