Description
Optec Inc. Sagitta Off-Axis Guider - Manual Version for Enhanced Astro-Imaging
- Superior Aperture and Optics: Optec's Sagitta Off-Axis Guider boasts a full 3-inch (76.2mm) clear aperture, coupled with a premium, fully multi-coated pick-off prism featuring a 12.5mm clear aperture, optimized for guide camera illumination.
- Robust Camera Mounting: Equipped with a large brass split-clamp, the Sagitta OAG seamlessly attaches to any 1-1/4” format guide camera, offering extensive range for parfocal adjustments with the primary imaging camera.

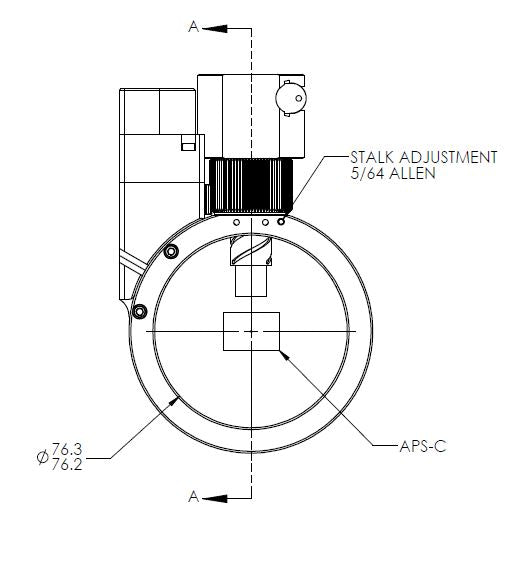

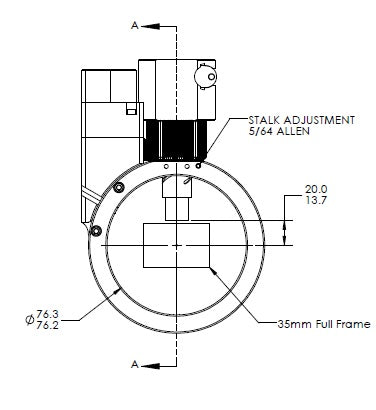

- Prism Stalk Adjustability: Features a user-friendly design allowing for a 12mm adjustment in prism stalk height with a single tool, ensuring precise engagement with the guide camera.
- Extended Guide Camera Adjustments: Offers an impressive 42mm+ range for guide camera positioning, while maintaining a slim OAG body profile of just 31.75mm (1-1/4”).
- Versatile Mounting Options: Utilizes the OPTEC-3000-S dovetail interface, facilitating easy connection to various telescope setups.
- Upgrade Ready: The manual Sagitta model can be effortlessly converted to a motorized version with the addition of the #19349 Motor and #19690 FocusLynx Controller, transforming it into the fully automated #19340 Sagitta model.
Specifications
- 3-inch (76.2mm) clear aperture to main camera
- 12.5mm clear aperture to the guide camera
- large brass split-clamp for any 1-1/4” format guide camera

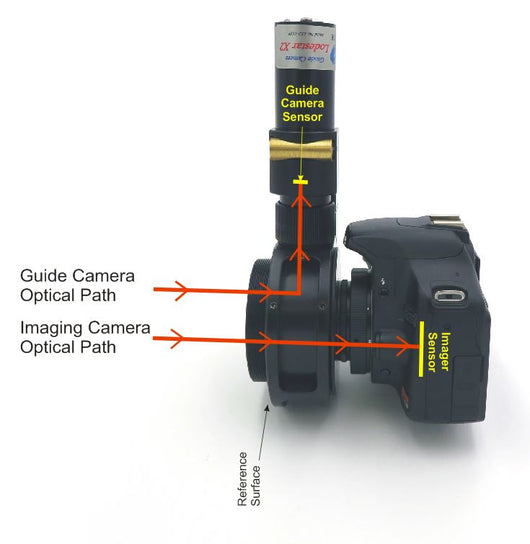

- Manual focuser to parfocalize main and guide camera
- OAG body thickness is held at only 31.75mm or 1-1/4”
- OPTEC-3000-S dovetails
- OPTEC-3000-S dovetail spec
- Sagitta Off-Axis Guider Installation instructions
- AstroGear Today review
Optec Inc. Sagitta Off-Axis Guider, manual version without motor
$695.00
