Optec Inc. Standard mountable receiver, OPTEC-3600 female receiver

$115.00

The #17879 3-inch Mountable Receiver bolts onto any gear with a 4-inch, square 4-bolt pattern and receives the OPTEC-3600 dovetail to attach to a host of other adapters   Specifications Outside...

Add to Wishlist

amazon paymentsamerican expressapple paybitcoingoogle payjcbmasterpaypalshopify paysofortvisa
SKU: 17879
Categories: Optec, Inc.
Description

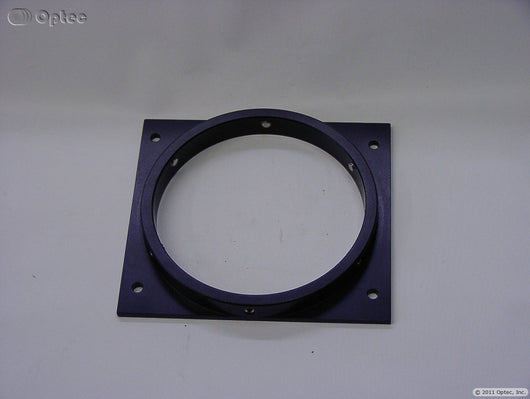

The #17879 3-inch Mountable Receiver bolts onto any gear with a 4-inch, square 4-bolt pattern and receives the OPTEC-3600 dovetail to attach to a host of other adapters



Specifications

  • Outside Diameter: 4"x4.5" (101.6mmx114.3mm)
  • Overall Height: 0.5" (12.7mm)
  • Clear Aperture: 3.6" (91.4mm)
  • Weight: 3 oz (86.2 g)
  • Back-focus Usage: 0.5" (12.7mm)
  • Telescope Side Connection: Rectangular Bolt Pattern
  • Camera Side Connection: OPTEC-3600 Receiver
  • Drawing
