Optec Inc. Takahashi 89mm threaded mount to OPTEC-3600 dovetail adapter

$100.00

Takahashi's Mewlon 300 has a rear female thread 89mm in diameter and requiring a slight stand-off. Our #17825 mount was developed specifically for the Mewlon and allows attachment of the TCF-S3,...

Add to Wishlist

amazon paymentsamerican expressapple paybitcoingoogle payjcbmasterpaypalshopify paysofortvisa
Ask a Question
SKU: 17825
Categories: Optec, Inc.
Tags: 3600 dovetail dovetail adapters Optec
Description

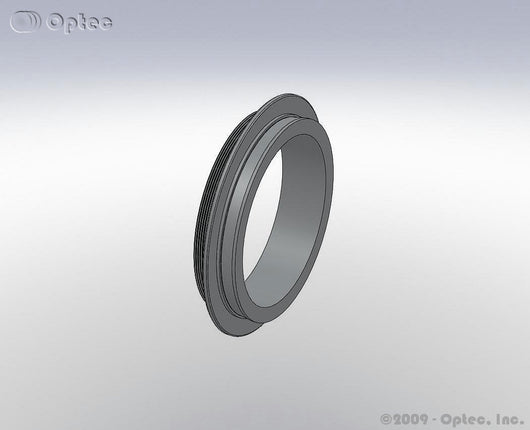

Takahashi's Mewlon 300 has a rear female thread 89mm in diameter and requiring a slight stand-off. Our #17825 mount was developed specifically for the Mewlon and allows attachment of the TCF-S3, Pyxis 3-inch, IFW-3 or Perseus 4-port instrument selector. There is enough clearance to attach any OPTEC-3600 dovetail receiver.

Specifications

Camera-side Compatibility:
  • TCF-S3 series focuser,
  • Pyxis 3" rotator,
  • Perseus 4-port instrument selector,
  • Any OPTEC-3600 receiver.
  • Overall Height: 1.0" (25.4mm)
  • Clear Aperture: 3.05" (77.5mm)
  • Weight: 4.6 oz (130 g)
  • Back-focus Usage: 0.330" (8.4mm)
  • Drawing
