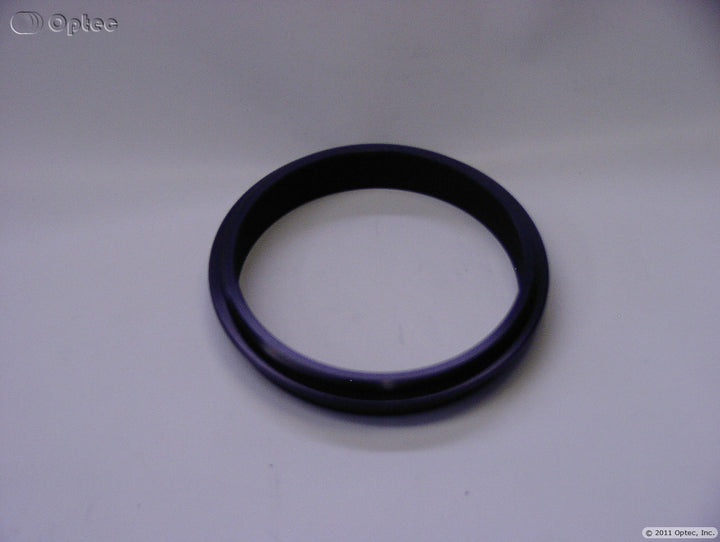

Optec Inc. Takahashi M92x1mm to OPTEC-3600 dovetail adapter
The #19806 M92 male threaded mount allows Optec equipment with an OPTEC-3600 receiver such as the Pyxis 3" or TCF-S3 to be connected to Takahashi equipment that presents a Female M92x1mm...
Description
The #19806 M92 male threaded mount allows Optec equipment with an OPTEC-3600 receiver such as the Pyxis 3" or TCF-S3 to be connected to Takahashi equipment that presents a Female M92x1mm thread connection.
Telescope Compatibility:
- Takahashi FSQ-106 with CAA [TKP30200] REMOVED
- Takahashi FSQ-106ED, FSQ-106EDX
- Replaces Takahashi Coupling [TKP36001]
Camera-side Compatibility:
- TCF-S3 series focuser,
- Pyxis 3" rotator,
- Perseus 4-port instrument selector,
- Any OPTEC-3600 receiver.
Specifications
- Outside Diameter: 3.9" (99mm)
- Overall Height: 0.64" (16.3mm)
- Clear Aperture: 3.25" (82.6mm)
- Weight: 1.92 oz (54.4 g)
- Back-focus Usage: 0.1" (2.54mm)
- Telescope Side Connection: Male M92X1mm Takahashi Thread
- Camera Side Connection: Male OPTEC-3600 Dovetail
- Drawing
Optec Inc. Takahashi M92x1mm to OPTEC-3600 dovetail adapter
$100.00
