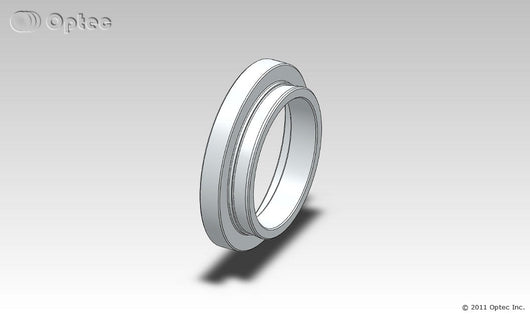

The #19661 Vixen mount allows Optec equipment with an OPTEC-2400 receiver such as the TCF-S and IFW to be connected to equipment that presents a Vixen VMC260-type connection.

Specifications

• Outside Diameter: 2.95" (74.9mm)
• Overall Height: 0.7" (17.8mm)
• Clear Aperture: 2.05" (52mm)
• Weight: 1.76 oz (50 g)
• Back-focus Usage: 0.34" (8.74mm)
• Telescope Side Connection: Vixen VMC260 Thread
• Camera Side Connection:: OPTEC-2400 Dovetail
• Drawing
