Pegasus Astro NYX-88 Strain Wave Gear Mount

$1,950.00

Pegasus Astro NYX-88 Strain Wave Gear Mount Introducing the Pegasus Astro NYX-88, the latest addition to the NYX harmonic mount series. This compact mount, weighing just 5 kg, offers an impressive...

Add to Wishlist

amazon paymentsamerican expressapple paybitcoingoogle payjcbmasterpaypalshopify paysofortvisa
SKU: NYX-88
Availability: In Stock Pre order Out of stock
Description

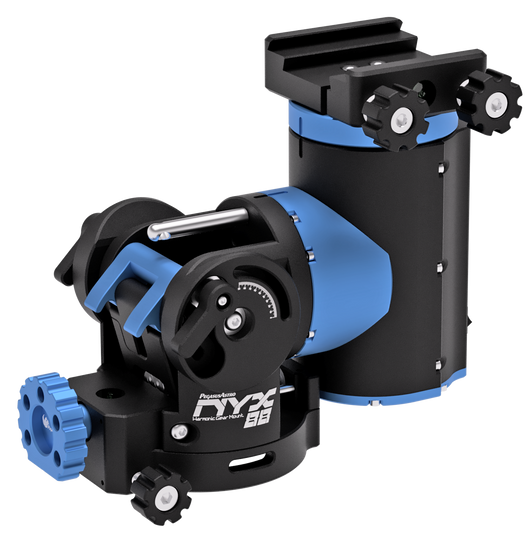

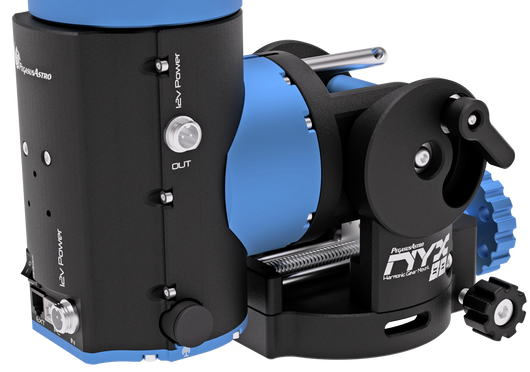

Pegasus Astro NYX-88 Strain Wave Gear Mount

Introducing the Pegasus Astro NYX-88, the latest addition to the NYX harmonic mount series. This compact mount, weighing just 5 kg, offers an impressive payload capacity of up to 14 kg without the need for counterweights, making it ideal for traveling astrophotographers and observational astronomers.

  • Precision Engineering: The NYX-88 features strain wave drives on both RA and DEC axes, delivering a backlash-free experience with high torque, even at maximum payloads.
  • Durable Aircraft-Grade Build: Constructed from CNC-machined aluminum alloy 6061, the mount is built to last, with an anodized black and blue finish.
  • Electronic Brake: Includes an RA axis brake to prevent backsliding when power is off, ensuring safety during slewing or tracking.
  • Lightweight and Compact: At just 5 kg, it supports up to 14 kg, and higher payloads can be achieved using a counterweight rod.
  • Versatile Operation: Switch between German Equatorial and Altazimuth modes via PC, hand-controller, or mobile app.
  • Seamless Connectivity: Supports wireless and USB2 simultaneously, and is fully compatible with ASCOM Alpaca, ASCOM, INDI, and LX200 protocols.
  • Power Efficient: Operates on a standard 12V battery, consuming less than 0.6 amps during tracking and up to 2 amps during slewing.
  • Universal Saddle: Comes with a low-profile, rigid saddle that accepts Vixen and Losmandy 3-inch dovetails.

With the NYX-88, you get the best of precision, portability, and performance, making it the perfect companion for astronomy enthusiasts. Plus, it fully integrates with modern imaging software like N.I.N.A., offering driverless control through ASCOM Alpaca for an enhanced user experience.

Specifications



Material CNC machined 6061  aircraft aluminum alloy
Mount Mode Equatorial or Altazimuth
Mount Drive Strain Wave (Harmonic) Gear and Belt resulting reduction 400:1 (RA) and 300:1 (DEC)
Load Capacity 14 Kg without counterweights
20 Kg with counterweights
Weight 5.0 Kg
Safety / Power Off Brake On RA Axis
Dovetail Vixen and Losmandy 3-inch
RA Motor Resolution 0.15”
Max Slew 5 degs/sec
Power Voltage 12V DC unregulated
0.7A during tracking, 2Amps during slewing
Guide Port ST4
Counterweight Shaft M12 Shaft (1.75mm pitch)
Communication Wireless 802.11g and USB2
Operating Temperature -20° to + 50°C
Warranty 3 years
Made in (designed, assembled and tested) Greece. We carefully curate the entire manufacturing, testing and packing process.


Software and Documentation

Unity Platform

Unity for Android (Google Playstore) (Android 11 and above)

Unity for Android (Android 9 and 10)

Unity for IOS (In AppStore)
