Player One Astronomy Artemis-C Pro: Advanced DSO Cooled Camera for Astrophotography

The Artemis-C Pro (IMX294) is part of Player One Astronomy's most advanced DSO cooled camera line, meticulously designed for high-performance deep-sky imaging. Launched after extensive development and testing, the Artemis-C Pro combines cutting-edge technology with a striking design, making it a must-have for serious astrophotographers.

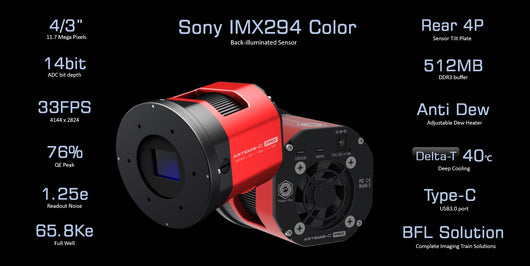

Key Features:

Innovative Design: The Artemis-C Pro features a unique octagonal body with four cambered surfaces and round chamfers, ensuring both rigidity and flexibility. The red and black color scheme, combined with a super-fine frosting process, gives the camera a luxurious and cool aesthetic.
Sony IMX294 Sensor: Equipped with a 4/3″ format color sensor, the Artemis-C Pro boasts a 4.63µm pixel size, 11.7MP resolution (4144x2824), and a diagonal of 23.2mm. The sensor’s well depth reaches 65.8Ke, ensuring exceptional image quality.
Advanced Cooling System: The camera utilizes a 2-stage TEC cooling unit, achieving a Delta-T of over 40℃, effectively reducing sensor temperature to enhance imaging performance. The cooling system also includes an adjustable anti-dew heater to prevent condensation during long exposure sessions.
DDR3 Cache: With a 512MB DDR3 cache, the Artemis-C Pro ensures stable data transmission, minimizing frame dropping and readout noise. This feature also allows the camera to perform excellently even when connected to a USB 2.0 port.
High-Speed Data Transfer: The main data port supports USB 3.0, enabling the camera to achieve 33fps in RAW8 mode. The Type-C port is designed for easy connection during nighttime setups.

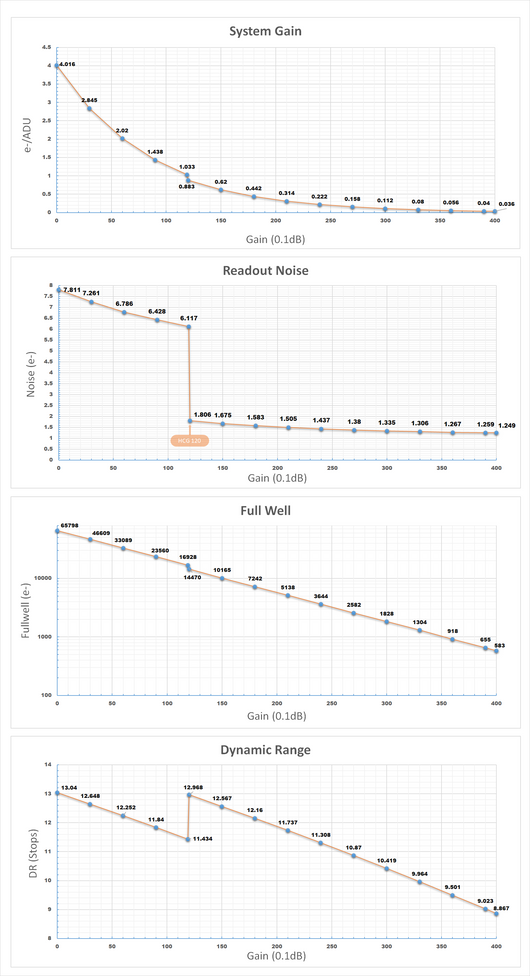

Low Readout Noise: The Artemis-C Pro offers impressively low readout noise, with values verified through actual testing. Users can also test this themselves using Sharpcap 4’s Sensor Analysis feature.

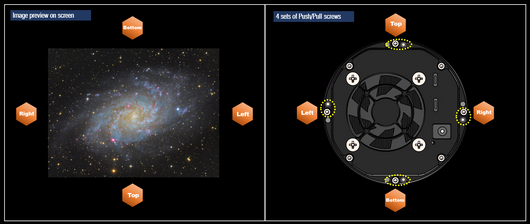

Precision Tilt Adjustment: The rear adjustment and 4-point tilt plate help minimize field curvature, ensuring sharp and accurate images across the entire field of view.
Cooling System & Anti-Dew Heater: The ASCOM window provides control over the target temperature, fan speed, and anti-dew power, allowing users to customize the cooling performance based on their needs.
Overvoltage & Overcurrent Protection: The camera is equipped with mechanisms to protect against overvoltage and overcurrent, ensuring the safety of your equipment.

The Artemis-C Pro by Player One Astronomy is more than just a camera; it’s a sophisticated tool designed to push the boundaries of deep-sky imaging. With its advanced features and robust design, it promises to deliver exceptional performance, making it an indispensable part of any astrophotographer's toolkit.

Specifications

Weight	655 g
Sensor	New SONY IMX294 4/3" CMOS (color)
Diagonal	23.2mm
Total Pixels	11.7 Mega Pixels
Max Resolution	4144×2824
Pixel Size	4.63μm
Bayer Matrix	RGGB
Chip Size	19.2mm×13mm
Frame Rate	33FPS（10bit）
Shutter	Rolling shutter
Exposure Range	32μs-2000s
Readout Noise	7.8-1.2e
Full Well	65.8k e
QE Peak	≈76%
ADC	14 bit
Cooling Syetem	High quality 2 stage TEC cooling Componet
Cooler Power Consumption	12V – 3A Max
Delta T	40℃ ± 2℃ (below ambient)
Working Temperature and Humidity	Working Temperature: -10°C—60°C Working Relative Humidity: 0%—80%
Protective Window	D46*2MM High Quality AR Plus (Anti Reflection) Multi-Layer Coating
Data Port	Type-C USB3.0/USB2.0
Adapter	M48X0.75, 2", 1.25"
Back Focal Length	17.5mm, 12.5mm( without sensor tilt plate)
Diameter	90mm
Weight	650g
Resolution and FPS	Under USB3.0 mode Resolution 10bit ADC 16bit ADC 4144×2824 33FPS 16.5FPS 3840×2160 47FPS 23.5FPS 2560×1440 97FPS 52.6FPS 1920×1080 160FPS 73.5FPS 1280×720 314FPS 107FPS 1024×768 340FPS 102FPS 800×600 429FPS 127FPS 640×480 525FPS 154FPS More resolution options could be setup in capture software!
