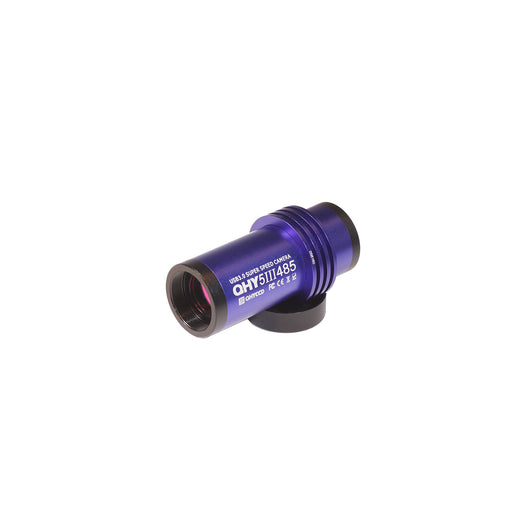

QHYCCD QHY5III485-C
Specifications Model QHY5III485C CMOS Sensor Sony IMX485 Color/Mono Color Only FSI/BSI BSI Pixel Size 2.9um Pixel Array 3864*2180 Effective Pixels 8.4MP Sensor Size 1/1.2inch Frame Rate @Full Frame 44FPS@8-bits...
Description
Specifications
| Model | QHY5III485C |
| CMOS Sensor | Sony IMX485 |
| Color/Mono | Color Only |
| FSI/BSI | BSI |
| Pixel Size | 2.9um |
| Pixel Array | 3864*2180 |
| Effective Pixels | 8.4MP |
| Sensor Size | 1/1.2inch |
| Frame Rate @Full Frame | 44FPS@8-bits |
| Frame rate @ROI readout | 78.5FPS@1200lines, 87FPS@1080lines, 91.5FPS@1024lines, 97.5FPS@960lines, 121FPS@768lines, 190FPS@480lines |

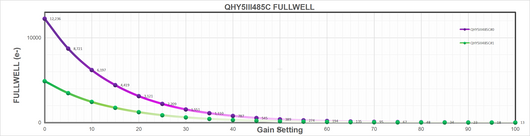

| Ful Well Capacity | 12ke- |
| A/D | 12bit (output as 16bit and 8bit) |
| Computer Interface | USB3.0 |
| Non-volatile memory / On camera storage | 128MB DDR II Memory Buffer |
| Guide Port | St4 |
| Telescope Interface | 1.25-inch, CS mount |
| Weight | 90g |
QHYCCD QHY5III485-C
$359.00
