QHY5III568C Planetary Color

CMOS Imaging Camera Overview

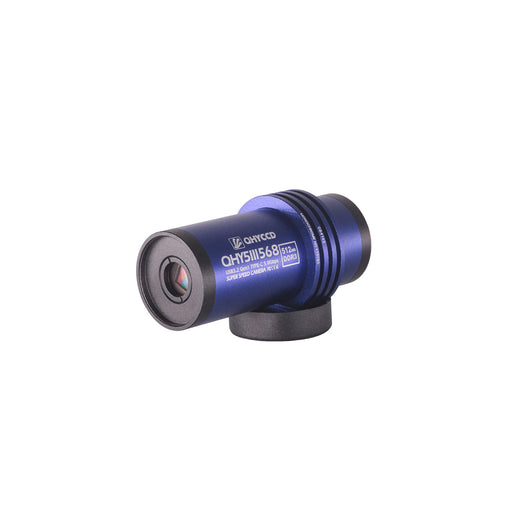

• Advanced Imaging Performance: The QHY5III568C is a state-of-the-art planetary and guiding camera featuring a back-illuminated CMOS sensor with a global shutter, ensuring superior sensitivity and image quality.
• High-Speed Capabilities: Capable of achieving an impressive speed of approximately 304fps at nearly 1080p resolution, making it ideal for capturing fast-moving celestial objects.

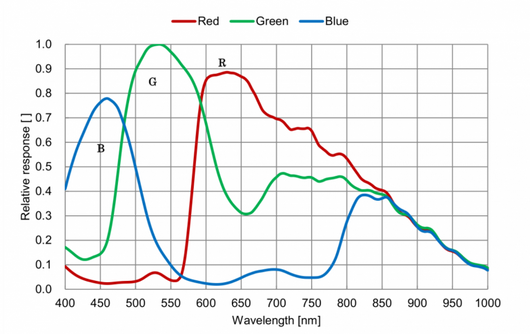

• Back-Illuminated Sensor (BSI): Offers enhanced sensitivity by allowing photons to directly reach the photosensitive layer, resulting in higher quantum efficiency and improved image capture.
• Global Shutter Technology: Ensures uniform exposure across the entire image area simultaneously, perfect for capturing high-precision images of rapidly moving objects without distortion.
• True Hardware Binning: Supports charge-domain binning (FD Binning), similar to CCD cameras, for true hardware pixel binning, significantly improving the signal-to-noise ratio and frame rate.
• Upgraded Series V2 Features: Equipped with a 512MB DDR3 image buffer to reduce computer transmission pressure, beneficial for planetary photography requiring extensive data writing in short durations.

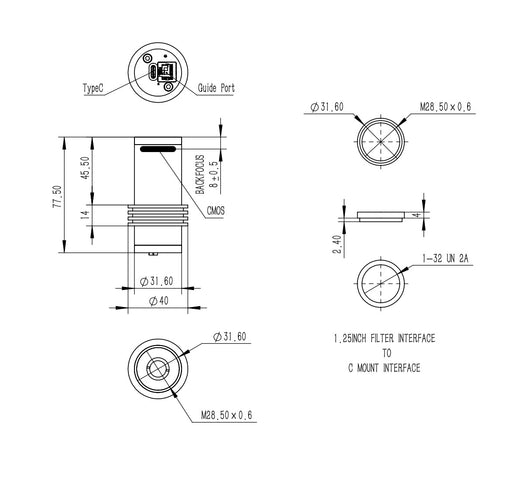

• Enhanced Front-end Design: Features a new front-end design with better compatibility, including a short back focus length of only 8mm, easy filter wheel connectivity, and the ability to use lenses with optional adapters.
• USB 3.2 Gen1 Type C Interface: Utilizes a durable and flexible USB3.2 Gen1 Type-C interface for reliable and high-speed data transfer.
• Universal Guiding Interface: The ST-4 compatible guiding interface simplifies the replacement process for the guiding cable, enhancing the camera's versatility.
• Indicator LED for Status Monitoring: Includes a multi-colored status indicator LED for easy troubleshooting and ensuring no light contamination during image capture.

The QHY5III568C integrates cutting-edge technology with practical features for both planetary imaging and guiding, offering astronomers unparalleled performance and versatility in a compact package.

Specs
