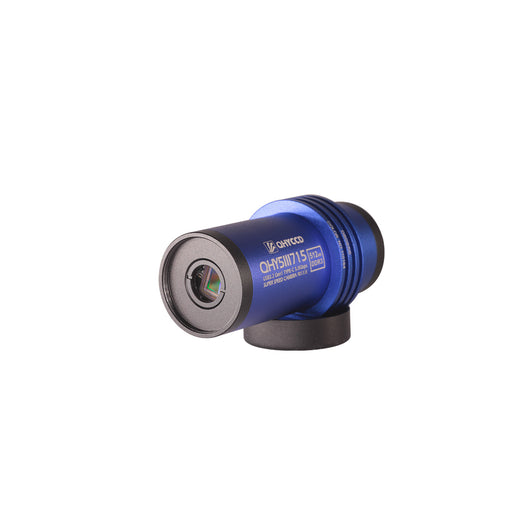

QHYCCD QHY5III715C: Ultra-High Resolution Color Camera for Precise Imaging

Key Features:

Exceptional Resolution and Sensitivity: The QHY5III715C features an ultra-high resolution, back-illuminated color sensor, offering remarkably low read noise for superior image quality.
Compact Sensor Size: Equipped with a 1/2.8-inch optical format sensor, making it particularly suitable for smaller, short focal length refractors.
4K Resolution with Fine Pixels: Boasts a 4K resolution with tiny 1.45um pixels, providing detailed images and making it ideal for capturing intricate celestial details.

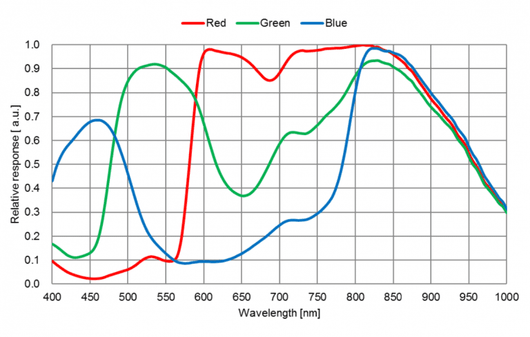

Advanced NIR Capability: The latest sensor technology includes deeper photodiode pixel wells, enhancing sensitivity to red and near-infrared (NIR) light and equalizing peak sensitivity across visible and NIR spectrums.
Large DDR3 Image Buffer: Comes with a 512MB DDR3 image buffer, effectively reducing computer transmission pressure, which is vital for planetary photography involving extensive data capture.
Versatile Top Adapter Design: The top adapter glass can be easily switched, offering flexibility for using different filters, even when using lenses.
Convenient Filter Compatibility: Includes a basic top adapter with 1.25-inch threads, compatible with standard filters for various imaging requirements.
Enhanced USB Interface: Utilizes the USB3.2 Gen1 Type-C interface for improved durability and flexibility, a significant update from the previous USB3.0 Type-B interface.
Quality Cable Recommendation: Advises using QHYCCD's official standard Type-C data cable to ensure reliable camera performance and prevent issues caused by inferior cables.
Universal ST-4 Guiding Interface: Features a universal ST-4 compatible guiding interface, allowing for easy replacement of guiding cables if needed.
Status Indicator LED: Includes a multi-colored status indicator at the back of the camera for easy diagnostics of operational statuses, designed to be non-intrusive during normal imaging activities.

Specifications

Model	QHY5III715C
CMOS Sensor	Sony IMX715
Pixel Size	1.45um*1.45um
Effective Pixel Area	3840*2192
Effective Pixels	8.4 Mega Pixel

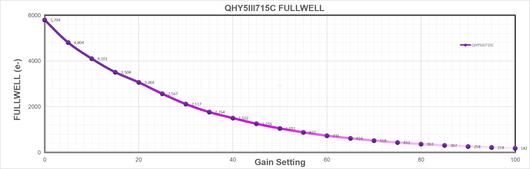

Fullwell	5.7ke-
Readout Noise	0.87-2.17e-
AD Sample Depth	12-bit (output as 16-bit and 8-bit)
Built-in Image Buffer	512MB DDR3 Memory
ROI Frame Rate	Full Resolution 42FPS @8BIT 23FPS @16BIT 1920Lines 83FPS @8BIT 47FPS @16BIT 640Lines 99FPS @8BIT 99FPS @16BIT
Exposure Time Range	11us-900sec
Shutter Type	Electric Rolling Shutter
Computer Interface	USB3.2 Gen1 Type-C
Guide Port	st4

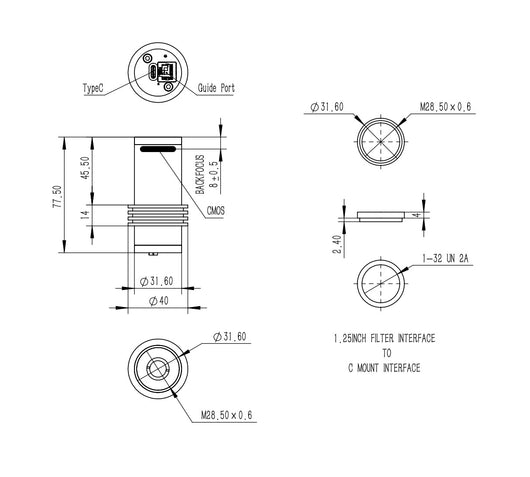

Telescope Interface	1.25-inch, compatible with CS-port and C-port lenses by replacing the front-end connector
Front end	Standard replaceable IR anti-reflection glass
Back Focal Length	17mm(with adapter);8±0.5mm（without adapter）
Chip package size	5.6mm x 3.2mm
Debayer	GBRG
Weight	90g
