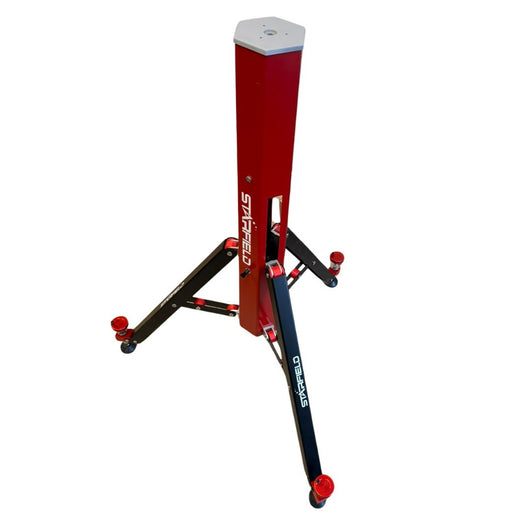

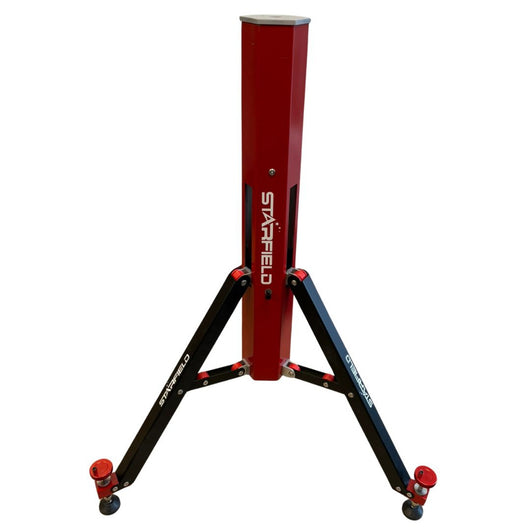

Starfield Optics Tri-Pier 1000-B with Carry Bag

• Built for serious observing and imaging: a hex-core center column and laser-cut steel chassis deliver rock-solid stiffness and low vibration

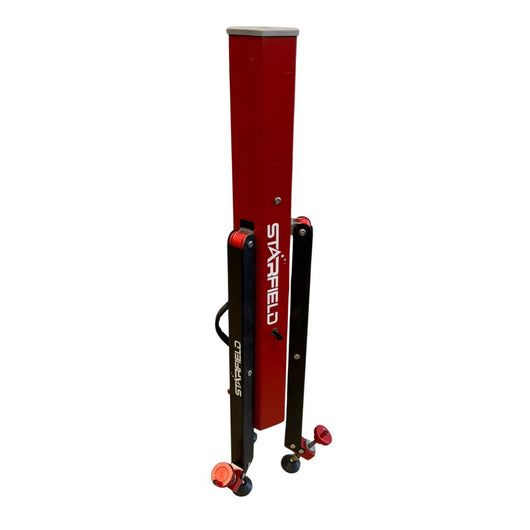

• Fully enclosed internal slide system deploys and retracts legs smoothly—no exposed clamps, no snags, ultra-fast setup and teardown

• Vibration-dampening, quick-adjust feet with bold locking collars make leveling intuitive on grass, gravel, or rugged terrain

• Expanded leveling range: 90 mm (3.5") per foot to conquer uneven sites and keep polar alignment locked in

• Confident payload handling for modern rigs: 190 lb capacity with excellent torsional resistance for long-exposure tracking

• Universal top plate (3/8" center bolt) pairs with popular EQ, Alt-Az, strain-wave/harmonic mounts; brand adapters available

• Designed, sourced, and built in North America; welded frame + CNC precision for lifetime durability

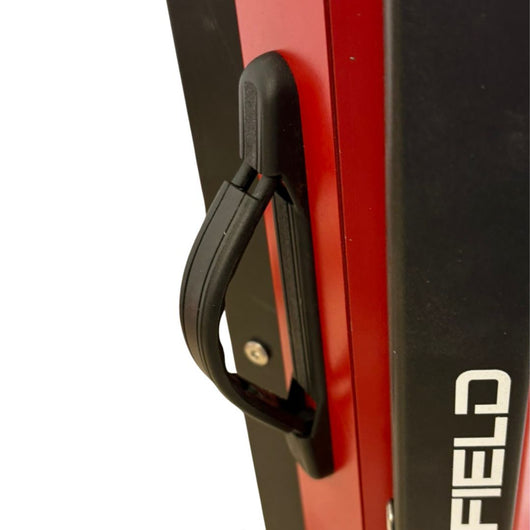

• Field-ready portability: strong, compact form factor with an included carry bag for dark-sky travel and outreach

Specifications

• Material: High-grade laser-cut steel

• Construction: Welded frame, CNC precision bending

• Center Column: Hexagonal profile for superior torsional rigidity

• Leg Deployment: Fully enclosed internal slide mechanism

• Feet: Quick-adjust, vibration-dampening with locking collars

• Leveling Adjustment: 90 mm (3.5") per foot

• Mount Compatibility: Universal top plate with 3/8" center bolt; adapters available for Sky-Watcher, iOptron, Celestron, and more

• Weight: 22 lb (≈ 10 kg)

• Payload Capacity: 190 lb

• Carry Bag: Included

• Use Cases: Imaging rigs, German EQ or Alt/Az mounts, strain-wave/harmonic drives, mobile observatories, outreach

What’s in the Box?

• Starfield Pier-1000B portable hex-core pier

• Universal top plate with 3/8" center bolt

• Three vibration-dampening, quick-adjust feet with locking collars

• Padded carry bag for transport and storage

• Basic setup and safety info (on product/packaging)
