Svbony SV227 5nm Filter 2" Narrowband Filters(Choose Band)
Svbony SV227 5nm Narrowband 2" Filters (Choose Band: H-Alpha, OIII, or SII) The Svbony SV227 5nm Narrowband 2" Filters are essential for astrophotographers seeking to enhance contrast and detail in nebula...
Svbony SV227 5nm Narrowband 2" Filters (Choose Band: H-Alpha, OIII, or SII)
The Svbony SV227 5nm Narrowband 2" Filters are essential for astrophotographers seeking to enhance contrast and detail in nebula observation, even under light-polluted skies. Designed with precision and quality, these filters block unwanted light pollution and infrared wavelengths, allowing only the desired narrowband light to pass through.
Key Features:
- High Contrast and Detail: Blocks contrast-killing light pollution wavelengths, significantly enhancing the visibility of nebulae structures.
-
5nm Bandwidth: Allows specific wavelengths to pass through, delivering optimal performance for nebula and emission line imaging.

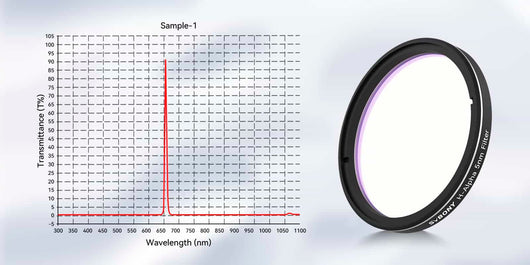

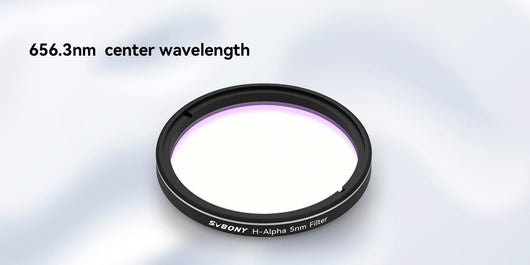

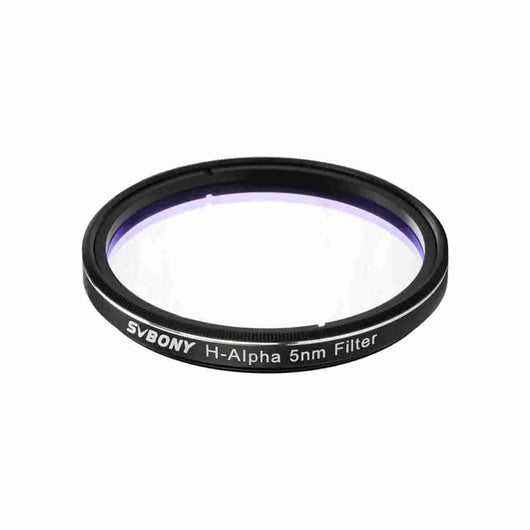

- H-Alpha Filter: Passes light at 656.3nm with 90% transmission, ideal for capturing hydrogen emission nebulae.

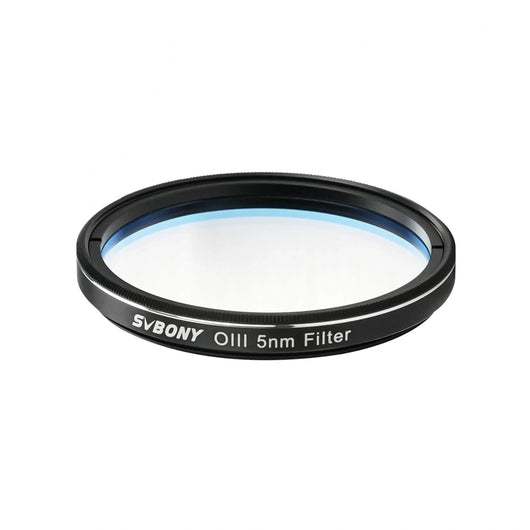

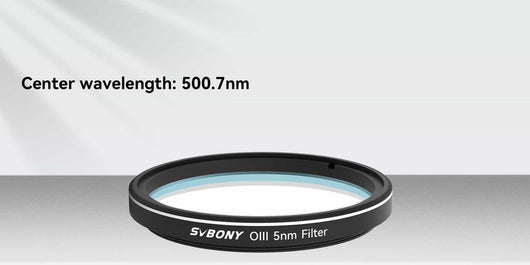

- OIII Filter: Passes light at 500.7nm with 90% transmission, perfect for observing planetary and gaseous nebulae.

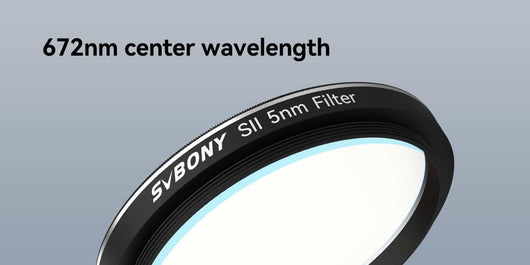

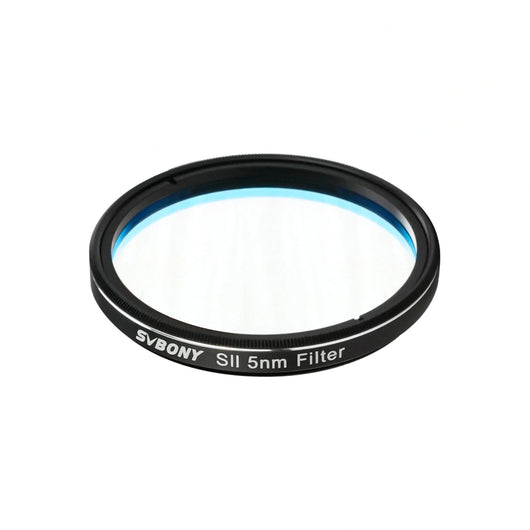

- SII Filter: Passes light at 672nm with 90% transmission, excellent for capturing sulfur-rich emission regions.
- Infrared Blocking: Filters out IR wavelengths (700nm–1000nm), eliminating the need for a separate IR-Cut filter.
- Mounted Design: 2-inch mounted filter threads directly into the barrel of your telescope eyepiece for secure and straightforward installation.
- Enhanced Nebula Observation: Reduces unwanted light pollution caused by artificial sources like sodium vapor and mercury vapor lights, as well as natural light emissions.
- Wide Compatibility: Works with most telescopes using 2-inch eyepieces, enhancing their astrophotographic capabilities.
Important Notes:
- Not suitable for observing the Sun.
- Unsuitable for telescopes with a focal ratio below F/5.

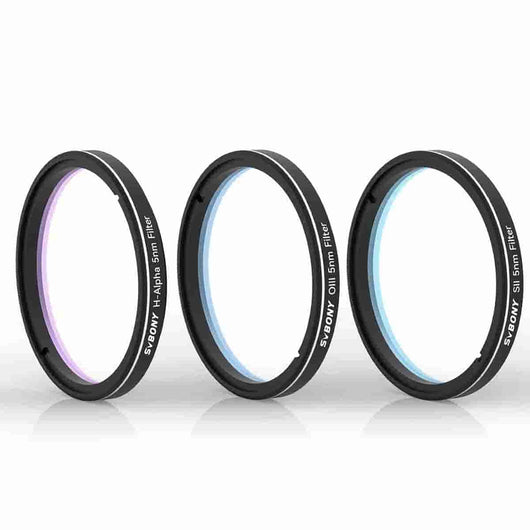

The Svbony SV227 5nm Narrowband Filters are available in H-Alpha, OIII, and SII variants, each tailored for specific astrophotographic needs. Experience sharper, more detailed nebula images and a major boost in contrast, making these filters an essential tool for advanced astrophotography.
Specifications
Model | SV227 | SV227 | SV227 |
SKU | W9187DA | W9187DB | W9187DC |
Type | SII Filter | H-Alpha Filter | OIII Filter |
Size | 2-Inch | 2-Inch | 2-Inch |
Wavelength Range | 300-1000nm | 300-1000nm | 300-1000nm |
CWL | 672nm | 656.3nm | 500.7nm |
FWHM | 5nm | 5nm | 5nm |

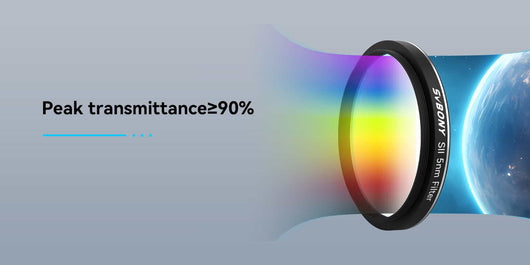

Peak Transmittance | ≥90% | ≥90% | ≥90% |
Substrate Thickness | 1.85mm | 1.85mm | 1.85mm |
Wavelength Range | 300-1000nm | 300-1000nm | 300-1000nm |

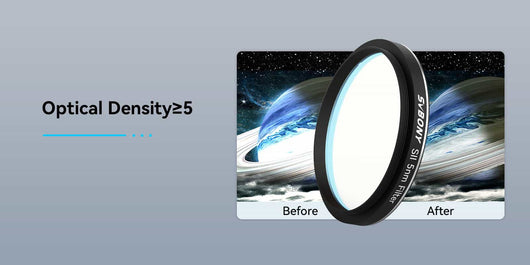

Blocking | ≥OD5 | ≥OD5 | ≥OD5 |
Clear Aperture | 44mm | 44mm | 44mm |
Surface Quality | 60/40 | 60/40 | 60/40 |
Surface Pparallelism | 1/4λ | 1/4λ | 1/4λ |
Parallelism | 30" | 30" | 30" |
Thread | M48x0.75 | M48x0.75 | M48x0.75 |
Single Thread | Yes | Yes | Yes |
Net Weight | 12.5g / 0.44oz/0.027lb | 12.5g / 0.44oz/0.027lb | 12.5g / 0.44oz/0.027lb |
Choose Set or Individual Band |
HA 5nm, Oiii 5nm, Sii 5nm, Full Set |
---|
