Tele Vue Optics Accessory X-Y Mount:

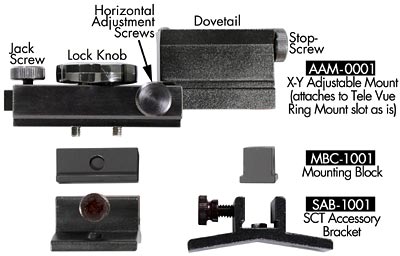

AAM-0001 X-Y Adjustable Mount

Key Features:

Versatile Pivot Knob: The large knob functions as a pivot for horizontal adjustments and doubles as a lock for the vertical "jack screw" adjustment.
Easy Installation and Removal: Features "stop screws" on the TV-60 dovetail for straightforward installation and removal. Reinstallation of the "stop screw" ensures safety after mounting.
Direct Attachment Capability: Can be directly attached to the slots in Tele Vue telescope ring mounts without the need for a mounting block and SCT accessory bracket.
MBC-1001 Mounting Block: Used with the SAB-1001 SCT accessory bracket, this component is typically fixed to the X-Y adjustable mount U-channel using two #10-32 button head screws.
SAB-1001 SCT Accessory Bracket: Designed for permanent installation on your SCT, using the screws provided with the SCT. This bracket securely locks the mounting block in place.
Enhanced Safety Features: Includes a safety stop and a safety counterbore for added security, ensuring reliable operation.
Optimal Positioning: The SCT bracket should be positioned so that the stop-screw faces the eyepiece end of the telescope for optimal functionality.
Streamlined Adjustment: The design allows for seamless and precise adjustments in both the X and Y axes for optimal alignment and stability.
Durable Construction: Built to Tele Vue's high standards, ensuring longevity and reliability in various observational conditions.
Compatibility: Specifically designed to complement the TV-60 system, enhancing its versatility and ease of use in various observational setups.
