Tele Vue Optics TV-60 X-Y Mount kit SCT

Tele Vue Optics TV-60 X-Y Mount Kit for SCT:

Precision and Versatility

• Quick Installation System: AAC-0002 X-Y Adjustable Mount System enables swift attachment of the Tele Vue 60 to Schmidt-Cassegrain telescopes (8" or larger) for use as a "superfinder" or with a Tele Vue Ring Mount.

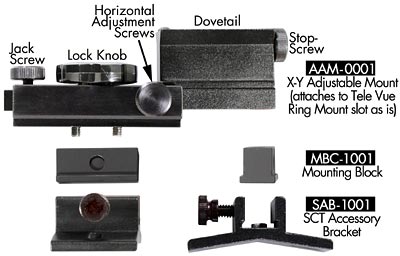

• Multi-Application Components: The kit includes three sections (AAM-0001, MBC-1001 & SAB-1001) adaptable for various mounting needs.
• AAM-0001 X-Y Adjustable Mount: Features a large knob acting as both a pivot for horizontal adjustment screws and a lock for the vertical jack screw adjustment. Designed for easy removal and installation with Tele Vue 60's dovetail.
• Stop Screw Safety: Includes "stop screws" for secure mounting and safety when the Tele Vue 60 is attached.
• MBC-1001 Mounting Block: Normally permanently attached to the X-Y adjustable mount U-channel, this part enhances stability and precision.
• SAB-1001 SCT Accessory Bracket: Designed for permanent installation on SCTs, it includes a plastic knob to lock the mounting block in place, ensuring safety and stability.
• Versatile Mounting Options: Can attach directly to the slots in Tele Vue telescope ring mounts without the mounting block and SCT accessory bracket.
• Enhanced Security Features: Equipped with a safety stop and safety counterbore for added security during usage.
