Vixen PF-L II Attachment Bracket
Description It allows you to use an polar alignment scope PF-LII, polar alignment scope PF-L or SX polar axis scope for the POLARIE U. The polar scope arm bracket can be...
Description
It allows you to use an polar alignment scope PF-LII, polar alignment scope PF-L or SX polar axis scope for the POLARIE U.

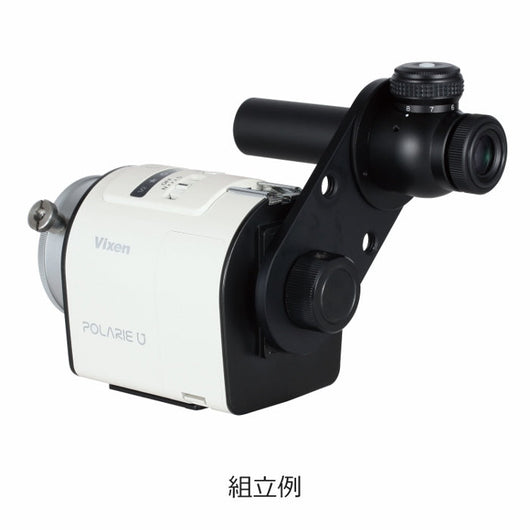

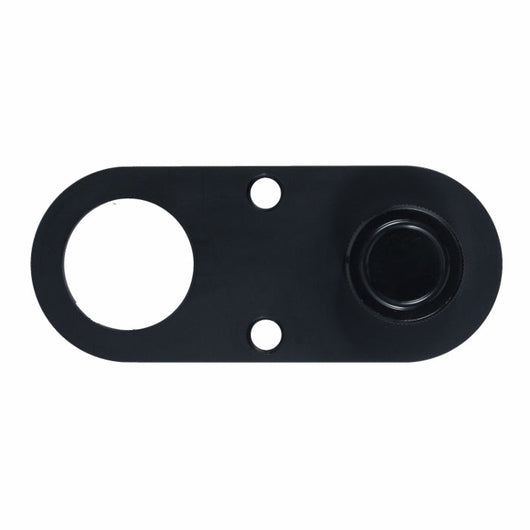

The polar scope arm bracket can be attached to the 3/8-inch socket on the bottom (rear) of the POLARIE U after unscrewing the 1/4" to 3/8" conversion socket screw. If this is the case, the removed conversion socket screw can be stored by screwing into the 3/8" holes on the arm bracket to avoid losing.
Specs
| Attachment thread | 34mm in diameter and pitch 0.75mm |
| Screw holes | 3/8-inch hole x 2 |
| Usable with | Polar alignment scope PF-LII, Polar alignment scope PF-L, SX polar axis scope |
| Dimensions | 120 x 50 x 5mm |
| Weight | 74 g / 2.64 oz. |
Warranty
Vixen warranties its products to be free from initial defects in materials and workmanship for a specified period based on part type:
Vixen Electronic Parts: Limited One Year Warranty
Vixen Mechanical Parts: Limited Two Year Warranty
