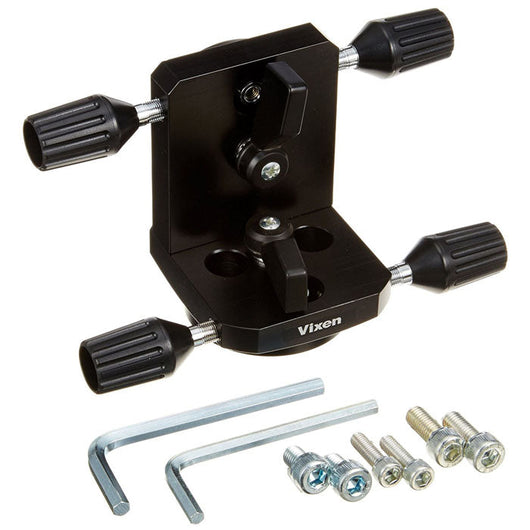

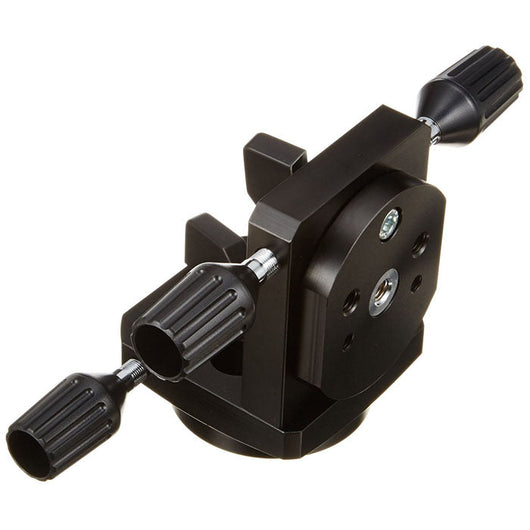

Guide Mount XY is designed for use in astrophotography and makes finding a guide star a sinch. A low profile mount used for installing a guide scope of 80mm or less. The altitude and azimuth fine adjustment screws allow you to adjust the orientation of a guide scope by +/-6.5 degrees in each direction. The Guide Mount XY can be installed on Vixen's Multi Plate DX (Item #2576), AXD Multi Plate (Item #36918), or Dovetail Mounting Block (Item #3810).
Specs
Loadable Optical Tube Size
Effective aperture under 80mm (recommended)
Altitude/Azimuth Fine Adjustment
Tangent Screw with fine adjustment knobs
Movable Range
+/- 6.5 degrees
Plate Attachment Base
Hole for M8x2 (35mm space)
Mount Base
Screw Hole for M6x2 (35mm space) and M8x2 (35mm space)
Size
100mm x 79mm x 160mm
Weight
750g
Warranty
Vixen warranties its products to be free from initial defects in materials and workmanship for a specified period based on part type:
