Warp Astron WarpDrive WD-20: Precision Mount for Astrophotography

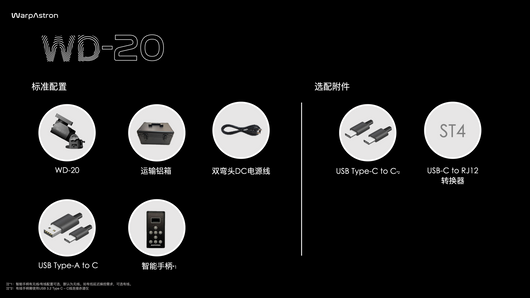

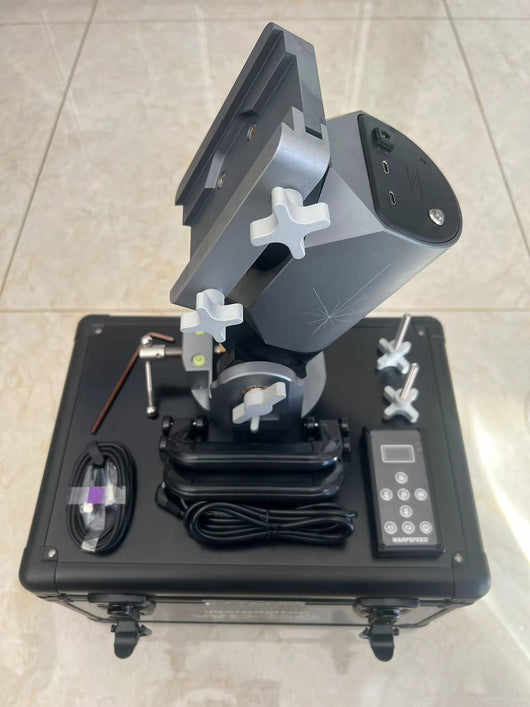

See the whats included picture, all other hardware in photos not included

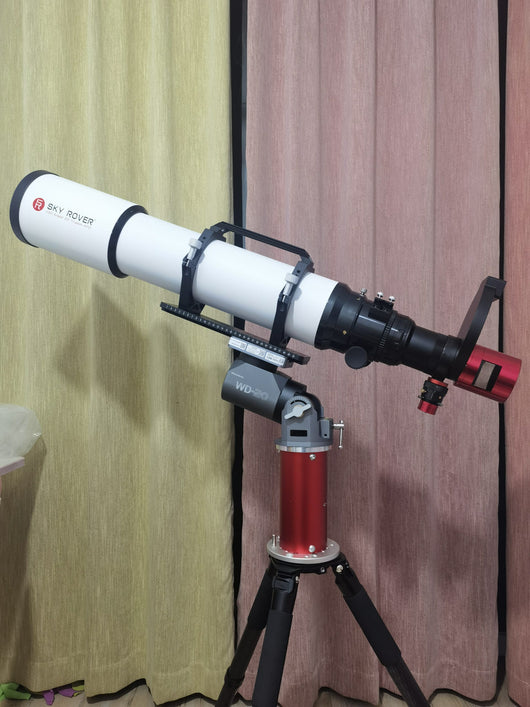

• High-Load Performance: The WD-20 is a cutting-edge harmonic drive mount utilizing Servo Direct Drive technology, offering an impressive standard load capacity of up to 50NM without the need for a counterweight. It effortlessly handles heavy equipment such as 130APO, 150APO, or C11 telescopes while delivering exceptional guiding performance.

• Compact and Powerful: Featuring a newly designed main body with a high power density servo motor, the WD-20 achieves remarkable load capacity while maintaining a lightweight profile of only 5.4kg. This innovative design ensures optimal performance without compromising on portability.

• Enhanced Convenience: Equipped with home sensors on both axes, the WD-20 offers added convenience for remote control and observatory use, simplifying astrography operations. The Servo Direct Drive technology enables fast response and precise positioning, ensuring consistently high-precision guiding.

• Versatile Compatibility: Weighing just 5.4kg, the WD-20 supports both Losmandy and Vixen dovetail mounts, making it a versatile option for various setups. Its impressive load capacity of up to 22kg without a counterweight, positioned 25cm from the RA axis, provides ample support for a wide range of telescopes and accessories.

• Advanced Features: The WD-20 boasts a high-precision encoder for accurate positioning, surpassing the performance of traditional stepper motors. Additionally, it includes a GPS/Beidou positioning module for automatic positioning, simplifying time and location synchronization for outdoor operations.

• Exceptional Build Quality: Crafted with precision using CNC technology, the main body of the WD-20 is integrally formed to ensure high strength and durability. Its deep sky grey or carbon black anodization adds a sleek finish, making it a standout addition to any astrophotography setup.

Specifications

Software and Docs

WD User Manual

Quick Start Guide

Windows Driver

Mac Driver

ASCOM OnStep Driver for WD-20

WD-20 BasePlate Mechanical Drawing
