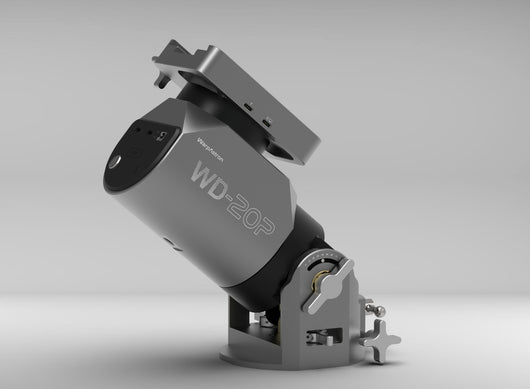

Warp Astron WarpDrive WD-20P (Mount Head Only)

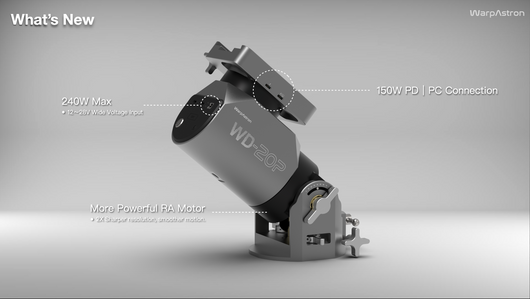

• Next-gen Servo Direct Drive mount head with a redesigned internal architecture that feeds power + data through the saddle for a clean, cable-free rig

• Up to 150 W USB-PD power delivery at the saddle (dual ports) to run high-performance mini PCs, cameras, and accessories without extra power bricks

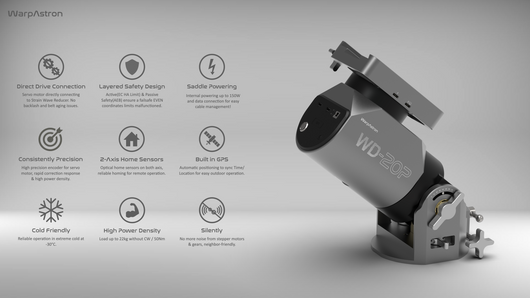

• Multi-layer safety: encoder-based limit protection, automatic emergency braking, and a gyroscopic sensor that intervenes even if coordinates fail—your gear stays safe

• Switchable equatorial or alt-az operation with smooth, high-torque BLDC servo direct-drive and strain-wave reducers for tight tracking and fast slews

• Travel-light, lift-heavy: only 5.7 kg (12.5 lb) mount head with payloads up to 22 kg (44 lb) without counterweights or 30 kg (66 lb) with counterweights

• Field-ready details: Vixen & Losmandy dual saddle, built-in GPS, two-axis home sensors, Wi-Fi/Bluetooth, and open ASCOM/INDI/LX200/INDIGO control

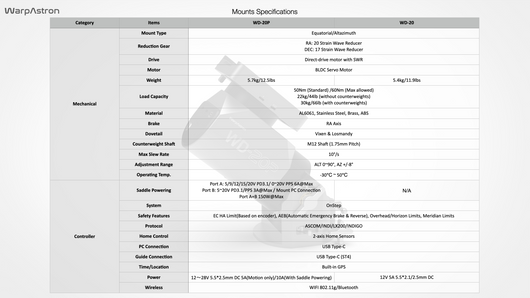

Specifications

• Mount Type: Equatorial / Altazimuth

• Reduction Gear: RA 20 strain-wave reducer; DEC 17 strain-wave reducer

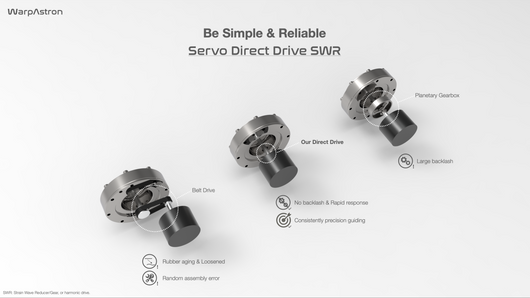

• Drive: Direct-drive motor with SWR

• Motor: BLDC servo

• Weight (head): 5.7 kg / 12.5 lb

• Load Capacity*: 150 Nm (Standard) / 60 Nm (Max allowed); 22 kg / 44 lb (without counterweights); 30 kg / 66 lb (with counterweights)

• Materials: AL6061, stainless steel, brass, ABS

• Brake: RA axis

• Saddle: Vixen & Losmandy

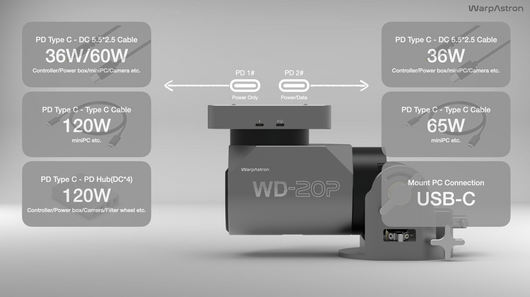

• Saddle Port A (USB-PD 3.1): 5/9/12/15 V @ 3 A, 20 V @ 5 A; PPS 0–20 V @ 6 A

• Saddle Port B (USB-PD 3.1): 5/9/12/15/20 V @ 3 A; PPS 0–20 V @ 3 A; Mount PC connection

• Counterweight Shaft: M12 (1.75 mm pitch)

• Slew Rate: 5°/s (standard 1/2 max), 10°/s (max)

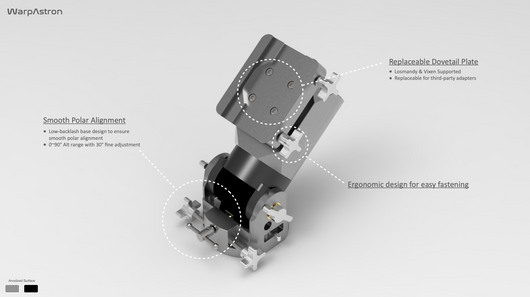

• Adjustment Range: Alt 0–90°, Az ±8°

• Operating Temperature: −30 °C to 50 °C

• Communication Protocols: ASCOM / INDI / LX200 / INDIGO

• Home Control: 2-axis home sensors

• Time/Location: Built-in GPS

• Power Input: 12–25 V, 10 A, 5.5 × 2.5 mm DC jack

• Wireless**: Wi-Fi 802.11g / Bluetooth

* Standard vs. Max Allowed: Standard is recommended for best performance. “Max allowed” indicates the mount can move the load; always factor tripod rigidity and center of gravity, and use counterweights appropriately.
** Wireless availability/features may vary by country/region.

What’s in the Box?

• Warp Astron WarpDrive WD-20P Mount Head (head-only configuration)

Notes: Tripod/pier, counterweights, power supply, cables, and control devices are sold separately. Two saddle USB-PD ports provide up to 150 W total power distribution for onboard gear.
