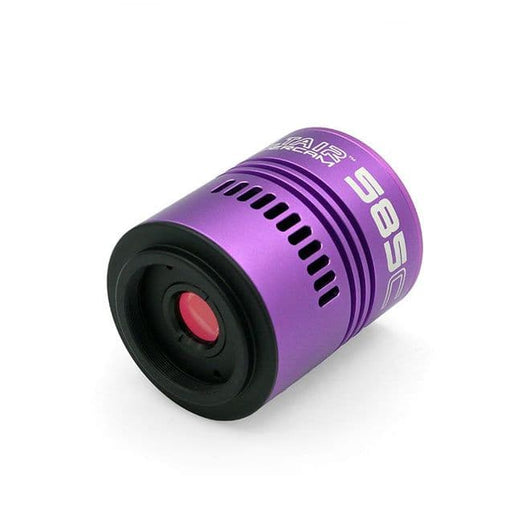

Altair Hypercam 585C Color Camera:

High-Performance Imaging

for Deep Sky & Solar System

The Altair Hypercam 585C is a powerhouse for astro imagers who want one camera for everything—solar system, deep sky, and even guiding. With the cutting-edge Sony Starvis 2 IMX585 BSI sensor, 91% quantum efficiency, and zero amp glow, this camera delivers high-sensitivity, low-noise performance with incredible flexibility.

Key Features

• Sony Starvis 2 IMX585 Sensor

  • 8.3MP Back-Illuminated CMOS sensor with 3840 × 2160 resolution

  • 2.9μm square pixels for high detail

  • 1/1.2” optical format with 12.84mm diagonal—ideal for wide-field refractors like the Altair 60EDF

• Optimized for Deep Sky & Planetary Imaging

  • Ultra-sensitive with 91% QE and no amp glow

  • Fast 47 FPS frame rate in 8-bit mode for planetary capture

  • HDR, HCG, and LCG modes for high dynamic range targets

• Low Noise, Stable Performance

  • 0.5e– to 0.65e– read noise in HCG mode

  • Onboard temperature sensor for accurate dark calibration

  • Fan-assisted passive cooling with integrated heatsink

• Reliable Speed & Data Handling

  • USB 3.0 connectivity for fast transfers

  • 512MB DDR3 buffer prevents dropped frames and improves stability

  • Compatible with USB 2.0 for slower setups or longer cables

• Included Software & Broad Compatibility

  • AltairCapture software (included on CD and online) with full control and automation

  • Free 1-year SharpCap PRO license included

  • Fully supports SharpCap, PHD2, APT, NINA, FireCapture, ASCOM

• Guiding & Automation Ready

  • ST4 auto-guiding port compatible with Sky-Watcher, iOptron, and Celestron mounts

  • Sensitive enough for autoguiding and live stacking

• Versatile Outputs & Formats

  • Captures in AVI, SER, JPEG, PNG, TIFF, BMP, and FITS

  • Binning options from 1x1 to 8x8 for flexibility in resolution and SNR

• Included in the Box

  • Camera body, 2” and 1.25” nosepieces, CS-mount insert, USB 3.0 cable, dust cap, and software CD

• Robust Support & Warranty

  • 2-year manufacturer warranty

  • UK/EU-based support and multilingual AltairCapture interface

The Altair 585C is a serious imaging tool built for astrophotographers who demand quality, reliability, and flexibility across every session—whether you're chasing planets or capturing distant nebulae.
